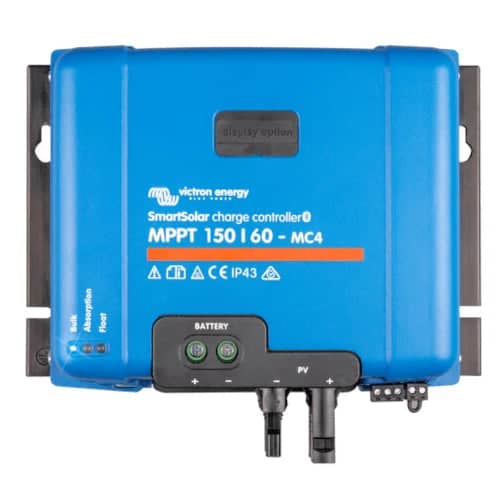

Victron Energy SmartSolar MPPT 150/60-MC4 SCC115060311

Victron part no. SCC115060311

£260.99Available to order, usually dispatched in 6 to 10 working days
Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. The SmartSolar MPPT 150/60-MC4 maintains battery health, extending its life.

The SmartSolar charge controller will even recharge a severely depleted battery. The charge controller can operate with a battery voltage as low as 0 Volts, providing the cells are not permanently sulphated or otherwise damaged.

Key Features

Features of the SmartSolar MPPT 150/60-MC4

MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations, even when there is no internet connection nearby, you may be able to monitor your MPPT by connecting the GlobalLink 520.

Optional SmartSolar Control Display

By adding the SmartSolar Control Display you will be able to check the status of your Charger and battery-storage at a glance. Simply plug it into the face of your MPPT charger to provide you with real-time monitoring and set-up capabilities.

Extensive Electronic Protection

Over-temperature protection and power derating when temperature is high.

PV short circuit and PV reverse polarity protection.

PV reverse current protection.

Specifications

  • Brand: Victron Energy
  • Manufacturer Part Number: SCC115060311
  • GTIN: 8719076051398
  • Voltage: 12/24/48V
  • Rated Charge Current: 60A
  • Nominal PV Power, 12V: 860W
  • Max. PV Short Circuit Current: 50A (max 30A per MC4 conn.)
  • Max. PV Open Circuit Voltage: 150V absolute maximum coldest conditions 145V start-up and operating maximum
  • Protection Category: IP43 (electronic components), IP22 (connection area)
  • Efficiency: 98%
  • Bluetooth Enabled: Yes
  • Dimensions: H215 x W250 x D95mm
  • Weight: 3Kg
  • Warranty: 5 Years
  • Country of Manufacture: India
