Authorised Victron Energy InstallerVictron Energy Phoenix Inverter 48/800 230V VE.Direct UK PIN481801400
Victron EnergyExcellent on Google

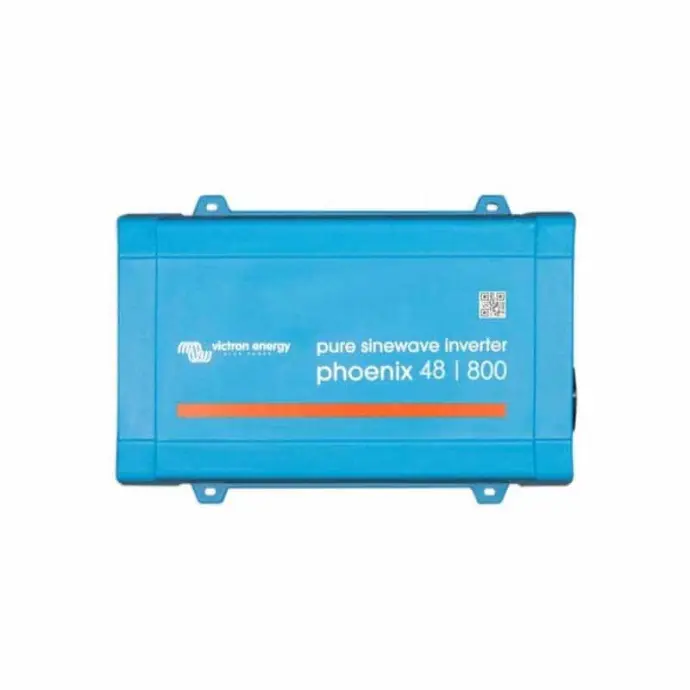

Victron Energy Phoenix Inverter 48/800 230V VE.Direct UK PIN481801400

Victron part no. PIN481801400

£181.99Available to order, usually dispatched in 6 to 10 working days
Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

The Victron Phoenix Inverter 48/800 230V VE.Direct UK is a high-quality and reliable inverter that converts 48V DC to 230V AC, providing a stable power source for a variety of equipment. Designed for sensitive electronics, this inverter outputs pure sine wave power, ensuring that devices like computers, refrigerators, and audio equipment run smoothly without risk of damage.

With its VE.Direct communication port, the inverter can be easily connected to a smartphone, tablet, or computer, enabling users to monitor its performance and make adjustments using the VictronConnect app. This feature allows for real-time data on in- and output voltage, load, and alarms, offering full control over the inverter’s settings.

The Phoenix Inverter 48/800 is built with advanced full-bridge and toroidal transformer technology, making it reliable and long-lasting. It is protected against overloads, short-circuits, and excessive temperature, ensuring safe operation under various conditions. Additionally, the Eco mode function saves power by automatically switching the inverter to standby when the load is low, activating again when needed.

Perfect for users looking for a versatile, efficient, and compact solution for 48V DC to 230V AC power conversion, the Victron Phoenix Inverter 48/800 offers excellent performance and ease of use.

Key Features

Phoenix Inverter VE.Direct

Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.

Models

250VA, 375VA, 500VA, 800VA, 1200VA

Highly Reliable - built for the years ahead

Phoenix Inverters are built to last. They feature sophisticated full-bridge and toroidal transformer topology - which is suitable for powering sensitive electronics. They are overload, temperature, and short-circuit protected.

Full bursts - High Peak output

Some electronic devices - particularly those which have an electric motor - require short burst of energy on start-up which is much higher than their rated power consumption. No problem - the Phoenix inverter has industry-leading peak-power capability.

Intelligent alarms, shut-downs, and re-starts

A high power draw on start-up can trigger false alarms, and shut-downs. Phoenix makes allowance for this and only shuts down in cases of persistent overload. Intelligently - shut downs will be followed by a series of re-starts - to eliminate "false alarms".

Conserve power with Eco mode

In Eco mode the inverter shuts down when no power is required. Phoenix senses the output socket every couple of seconds and automatically turns back on if power is again required.

User-configurable settings

Phoenix has a communication port providing access to status information, alarms and automatic user-configurable low-voltage shut downs. Shut downs will be followed by a series of intelligent re-start attempts. User settings can be accessed from your computer or mobile device via VictronConnect - our free-to-use app.

Specifications

  • Brand: Victron Energy
  • Manufacturer Part Number: PIN481801400
  • Voltage: 48V DC
  • Power (VA): 800VA
  • Peak Power: 1600W
  • Efficiency: 93%
  • Plug Type: UK
  • IP Rating: IP21
  • Dimensions (H x W x D): 86 x 172 x 275 mm
  • Weight: 3.7 kg
  • Warranty: 5 Years

Datasheets

Datasheet

Product Manual
