Description

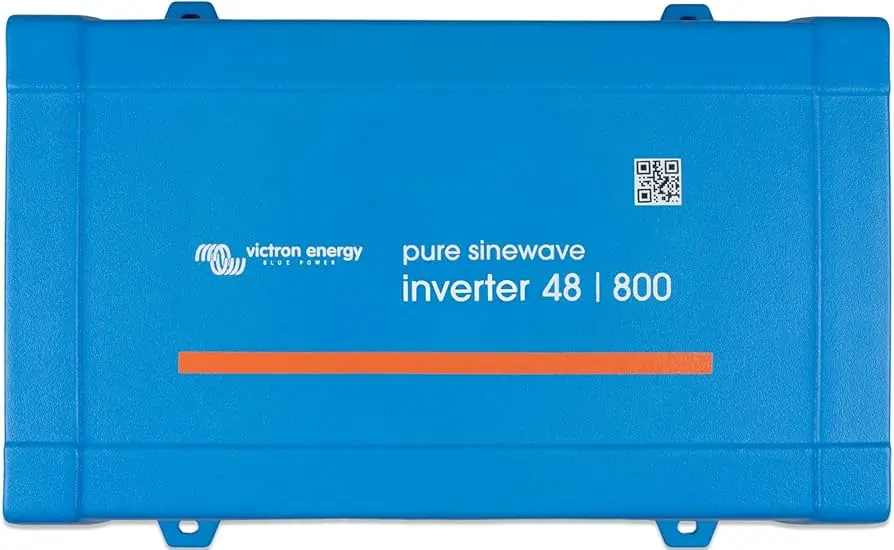

The Victron Phoenix Inverter 48/800 230V VE.Direct SCHUKO (PIN481800200) is designed to power domestic appliances requiring 230V AC using 48V DC batteries. This high-efficiency inverter is ideal for off-grid applications, including RVs, boats, and backup power systems.
With Pure Sine Wave output, it provides reliable and stable power for sensitive electronics. The VE.Direct communication port allows for remote monitoring and control through VictronConnect, ensuring full visibility and flexibility.
This model is equipped with a SCHUKO socket for easy and safe connections. The Phoenix Inverter series is known for its high peak power and efficiency, making it a versatile choice for various applications.
Key Features
- Pure Sine Wave Output: Ensures stable and reliable power for sensitive electronics.
- High Peak Power: Capable of handling high startup loads of appliances such as refrigerators and power tools.
- VE.Direct Communication Port:Remote monitoring and control using the VictronConnect app via Bluetooth or a computer.
- SCHUKO Socket: Safe and convenient power connection for 230V AC appliances.
- High Efficiency: Minimizes energy loss, maximizing battery usage.
- Robust Design: Durable and reliable for off-grid environments.
- Advanced Protection Features: Includes overload, short-circuit, and over-temperature protection.
Specifications
- Feature: Specification
- Model: Victron Phoenix Inverter 48/800 230V VE.Direct SCHUKO
- Manufacturer Part Number: PIN481800200
- Input Voltage: 48V DC
- Output Voltage: 230V AC
- Output Power (Continuous): 800 VA (640 W)
- Peak Power: 1600 W
- Output Frequency: 50 Hz
- Output Waveform: Pure Sine Wave
- Efficiency: Up to 93%
- No Load Power Consumption: 7W
- Communication Port: VE.Direct
- Socket Type: SCHUKO
- Protection Features: Overload, Short-circuit, Over-temperature
- Operating Temperature: -20 to +40°C (full output), derate above 40°C
- Cooling System: Temperature-controlled fan
- Dimensions (HxWxD): 86 x 165 x 260 mm
- Weight: 3.9 kg
- Standards Compliance: EN 60335-1, EN 55014-1, EN 55014-2
