Authorised Victron Energy InstallerVictron Energy Phoenix Inverter 48/1200 230V VE.Direct SCHUKO PIN482121200
Victron EnergyExcellent on Google

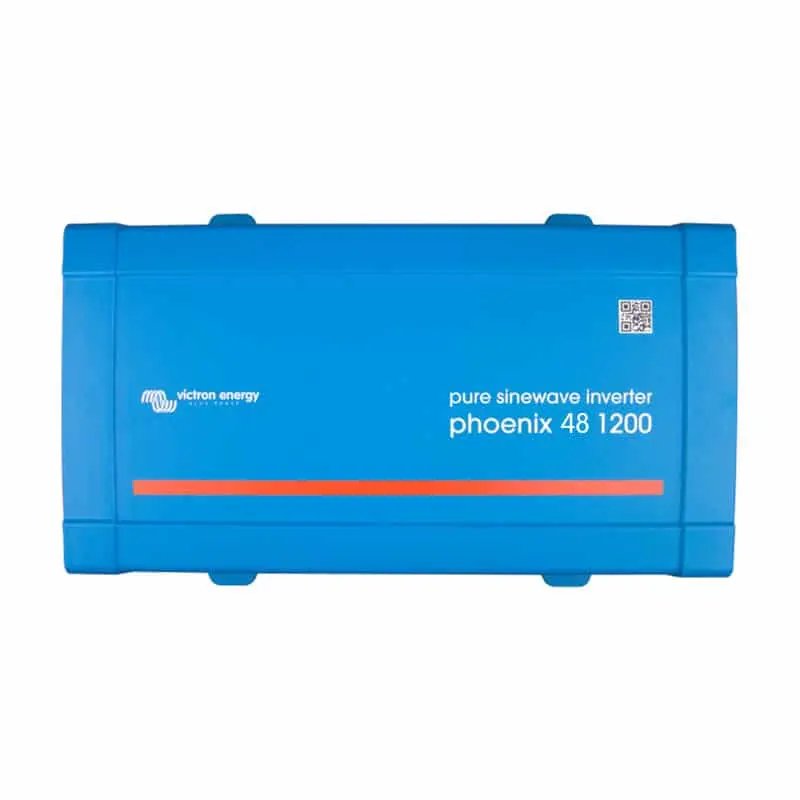

Victron Energy Phoenix Inverter 48/1200 230V VE.Direct SCHUKO PIN482121200

Victron part no. PIN482121200

£212.25Available to order, usually dispatched in 6 to 10 working days
Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

The Victron Phoenix 48/1200 230V VE.Direct SCHUKO Inverter is engineered for demanding applications, providing a high-quality pure sine wave output to power 230V AC domestic equipment using 48V DC batteries. It is designed to be used with leisure or automotive batteries and is perfect for users requiring high-efficiency power solutions for various applications.

This inverter features a VE.Direct communication port, allowing it to connect with computers and mobile devices via a VE.Direct to USB interface or a VE.Direct Bluetooth Smart dongle. This provides users with remote monitoring and the ability to adjust settings for optimised performance.

The inverter can be configured for various voltage settings, including low battery voltage alarms, cut-off, and restart levels, ensuring safe operation under different conditions. It supports ECO mode for energy efficiency, automatically switching to standby when the load decreases below a preset value, reducing unnecessary power consumption.

The inverter is short-circuit proof, has built-in protection against overheating, and is suitable for high start-up power, enabling it to power equipment with high surge requirements, such as power converters, electric motors, and other high-demand devices.

Key Features

  • Pure sine wave output for powering sensitive devices
  • 48V DC to 230V AC conversion ideal for leisure and automotive use
  • SCHUKO socket for easy connection to standard appliances
  • VE.Direct port for remote monitoring and configuration
  • ECO mode for energy-saving standby operation
  • High start-up power to handle difficult loads like electric motors
  • Short circuit and overheat protection for enhanced safety
  • Remote on/off capability for convenient control

Specifications

  • Nominal DC Voltage: 48V
  • Output Power (Continuous): 1200VA
  • Output Voltage: 230V AC (Pure Sine Wave)
  • Frequency: 50Hz or 60Hz
  • Efficiency: Up to 93%
  • Start-Up Power: High start-up power for demanding loads
  • ECO Mode: Yes, with adjustable sense level
  • Protection: Short circuit, Overheat protection
  • DC Connections: Screw terminals (easy installation)
  • Socket: SCHUKO
  • Dimensions (H x W x D): 133 x 217 x 71 mm
  • Weight: 2.7 kg
  • Warranty: 5 Years

Datasheets

Datasheet
