Description

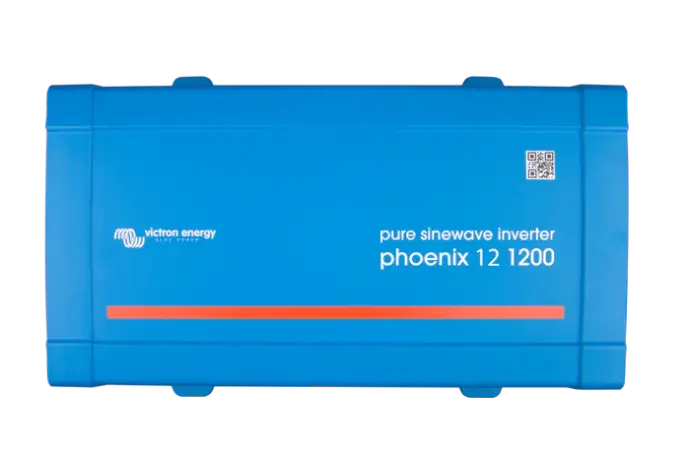

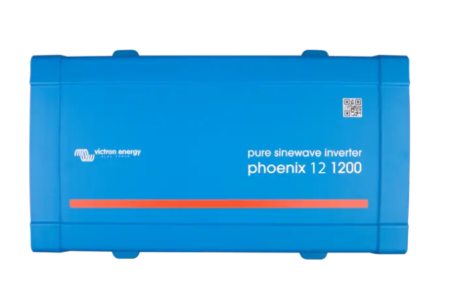

The Victron Phoenix Inverter 12/1200 VE.Direct NEMA 5-15R is designed to deliver stable and high-quality AC power from a 12V battery system. Built with full bridge plus toroidal transformer technology, it ensures high efficiency, reliability, and durability.
The VE.Direct communication port allows for real-time monitoring and full configurability, enabling users to adjust low battery voltage alarms, cut-off levels, and ECO mode settings using a USB interface for PCs or a Bluetooth dongle for smartphones and tablets.
With high start-up power, it easily supports LED power converters, halogen lamps, electric tools, and motorized appliances. The ECO mode enhances energy efficiency, automatically switching to standby when power demand drops below a preset value and reactivating when needed.
For uninterrupted power, it is compatible with the Filax Automatic Transfer Switch, which provides a seamless transition (under 20ms) to an alternative AC source—perfect for computers and sensitive electronics.
Key Features
Pure Sine Wave Output – Ensures clean and stable power for sensitive electronics.
VE.Direct Communication Port – Enables real-time monitoring & configuration via USB or Bluetooth.
Fully Configurable Settings:
- Low battery voltage alarm & cut-off levels
- Output voltage range: 210V – 245V
- Frequency: 50Hz or 60Hz
- ECO mode activation & sensitivity settings
High Start-Up Power – Supports LED power converters, halogen lamps, and electric tools.
ECO Mode for Energy Savings – Automatically switches to standby when load drops below 15W.
Remote On/Off Control – Can be activated via external switch or battery connection.
LED Diagnosis – Provides status indicators for easy troubleshooting.
Filax Automatic Transfer Switch Compatibility – Ensures seamless power transition for sensitive electronics.
Short Circuit & Overheat Protection – Ensures safe and reliable operation.
Easy Installation – Screw terminal connections require no special tools.
Specifications
- Feature: Specification
- Brand: Victron Energy
- Model: Phoenix Inverter 12/1200 VE.Direct
- Part Number: PIN122122500
- Voltage: 12V DC
- Continuous Output Power: 1200VA
- Peak Power: 2200W
- Output Voltage: 120V AC
- Output Frequency: 50Hz or 60Hz
- Efficiency: Up to 93%
- VE.Direct Communication: Yes (USB & Bluetooth compatible)
- Remote Monitoring: Yes, via VE.Direct & Bluetooth
- Protection Features: Short circuit, overload, thermal
- ECO Mode: Yes (adjustable settings, min load: 15W)
- Remote On/Off Control: Yes
- Plug Type: NEMA 5-15R
- DC Connection: Screw terminals (no special tools needed)
- Protection Rating: IP21
- Dimensions (HxWxD): 86 x 230 x 325mm
- Weight: 9kg
- Warranty: 5 Years
- Country of Manufacture: India
