Reliable DC-DC Charging with Bluetooth Control

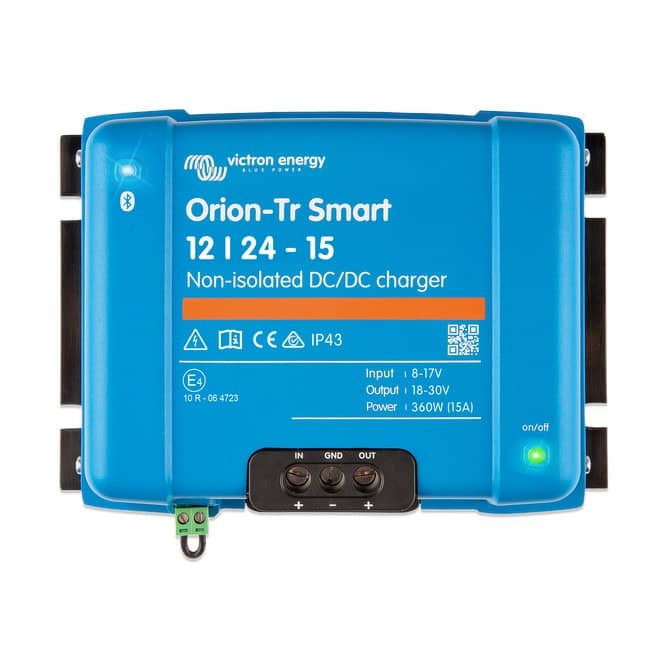

The Victron Orion-Tr Smart DC-DC Charger 12/24-15A (360W) Non-Isolated is a professional-grade adaptive 3-stage charger designed for dual battery systems in vehicles and boats. It features built-in Bluetooth, allowing real-time monitoring and programming via a smartphone or tablet. This charger is compatible with smart alternators and can efficiently charge both lead acid and lithium batteries in 12V or 24V systems. With high-temperature tolerance up to 55°C, parallel connectivity for increased power, and remote on/off functionality, this unit is an ideal solution for reliable DC-DC charging.
Advanced Charging with Intelligent Features
The Victron Orion-Tr Smart DC-DC Charger offers a fully programmable charging algorithm with an adaptive 3-stage charging process (Bulk, Absorption, and Float), ensuring optimal battery health. The smart alternator compatibility allows for efficient energy management, automatically detecting when the engine is running. It supports unlimited parallel connections, enabling multiple units to work together for increased output power.
Additionally, its high-temperature protection ensures safe operation, with full power output maintained up to 40°C. The IP43 protection rating guarantees durability when installed correctly, while screw terminals simplify installation without requiring special tools.
Key Features
Bluetooth Smart enabled
Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.
Fully programmable
Battery charge algorithm (configurable) or fixed output.
Smart alternator compatibility: engine running detection mechanism.
Adaptive 3-stage charge algorithm: bulk – absorption – float
For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.
For lithium batteries absorption time is fixed, default 2 hours.
Alternatively, a fixed output voltage can be chosen.
Remote on-off
A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: ORI122436140
- GTIN: 8719076048961
- Voltage: 12/24V
- Cont. Output Current: 15A
- Protection Category: IP43 (electronic components), IP22 (connection area)
- Efficiency: 88%
- Bluetooth Enabled: Yes
- Dimensions: H130 x W186 x D80mm
- Weight: 1.8Kg
- Warranty: 5 Years
- Country of Manufacture: India
