Description
Reliable DC-DC Charging with Bluetooth Connectivity

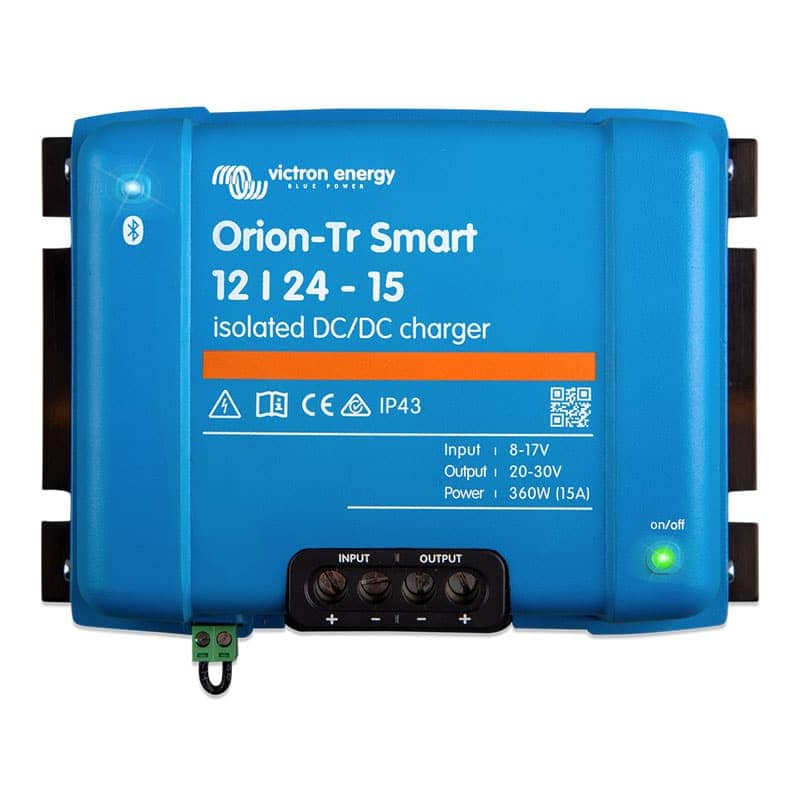

The Victron Orion-Tr Smart 12/24-15A (360W) Isolated DC-DC Charger is a high-performance adaptive 3-stage charger designed for dual battery systems in vehicles and boats. Featuring built-in Bluetooth, it allows real-time monitoring, configuration, and firmware updates via a smartphone or tablet. Compatible with both lead acid and lithium batteries, it ensures efficient and safe charging in 12V and 24V systems.
Advanced Charging Technology for Maximum Efficiency
The Orion-Tr Smart DC-DC charger is engineered for professional applications, offering adaptive charging with bulk, absorption, and float stages. It includes a smart alternator detection mechanism, making it ideal for modern vehicles with variable voltage alternators. This unit can operate efficiently in high temperatures up to 55°C, delivering full power output up to 40°C.
With an IP43 protection rating, remote on/off control, and short-circuit proof design, this charger is built for durability and convenience. Additionally, multiple units can be connected in parallel to increase output power when needed.
Key Features
- Bluetooth Smart Enabled – Monitor, configure, and update via a smartphone or tablet.
- Adaptive 3-Stage Charging – Automatically adjusts to prevent overcharging and ensure full battery recharge.
- Smart Alternator Compatibility – Engine running detection mechanism for modern vehicle alternators.
- Remote On/Off Control – Can be controlled using a remote switch or relay contact.
- Parallel Operation – Multiple units can be connected to increase output.
- High-Temperature Protection – Full output up to 40°C, reduced output at higher temperatures.
- IP43 Protection – Dust and water resistance when installed correctly.
- Screw Terminals – Easy installation with no special tools required.
Specifications
- Brand: Victron Energy
- Model: ORI122436120
- Voltage: 12/24V
- Charging Current: 15A
- Power Output: 360W
- Input Voltage: 8-17V
- Output Voltage: 20-30V
- Bluetooth: Yes
- IP Rating: IP43 (electronics), IP22 (connections)
- Operating Temperature: Up to 55°C (full power up to 40°C)
- Dimensions: H130 x W186 x D80 mm
- Warranty: 5 Years
