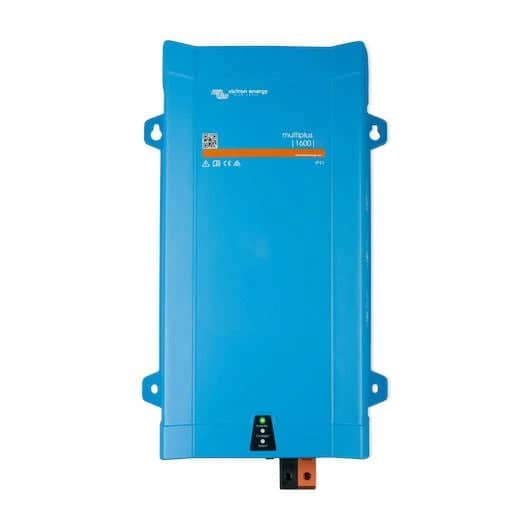

Victron Energy MultiPlus 48/1600/20-16 230V VE.Bus PMP482160000

Victron part no. PMP482160000

£351.99Available to order, usually dispatched in 6 to 10 working days
Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

The Victron MultiPlus 48/1600/20-16 230V VE.Bus is the upgraded version of the MultiPlus Compact range, offering a true sine wave inverter, a sophisticated adaptive battery charger, and a high-speed AC transfer switch all within a single, compact enclosure.

With PowerAssist technology, this model enhances the capacity of shore or generator power by seamlessly supplementing it with battery power during peak demand periods. When the load decreases, the excess power is automatically used to recharge the battery, ensuring efficient energy utilisation.

In the event of grid failure or disconnection from shore power or a generator, the integrated UPS function quickly activates, providing uninterrupted power to connected devices in less than 20 milliseconds, ensuring no disruptions to sensitive electronics.

The MultiPlus 48/1600 also supports parallel operation for higher power output and three-phase configurations, making it a flexible solution for expanding power requirements. Additionally, it offers remote monitoring and control when paired with GX devices (e.g., Cerbo GX), enabling management of the system locally or remotely using the VRM app and VRM portal.

This combination of advanced features and a compact design makes the Victron MultiPlus 48/1600/20-16 the perfect choice for anyone needing a reliable and scalable power solution.

Key Features

Features of the MultiPlus 48/1600

Uninterrupted AC power (UPS function)

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…”

Parallel Operation and Three Phase Capability

Up to six Multis can operate in parallel to achieve higher power output.

In addition to parallel connection, three units can be configured for three-phase output

PowerAssist: Boosting the Capacity of Shore or Generator Power

This feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.

Specifications

  • Brand: Victron Energy
  • Manufacturer Part Number: PMP482160000
  • GTIN: 8719076046813
  • Voltage: 48V
  • Cont. Output Power at 25°C: 1600VA
  • Peak Power: 2800W
  • Output AC Voltage: 230V
  • Transfer Switch: 16A
  • Charge Current House Battery: 20A
  • Protection Category: IP21
  • Efficiency: 95%
  • Bluetooth Compatible: No
  • Dimensions: H470 x W265 x D120mm
  • Weight: 10.2Kg
  • Warranty: 5 Years
  • Country of Manufacture: India

Datasheets

Data Sheet
