Description

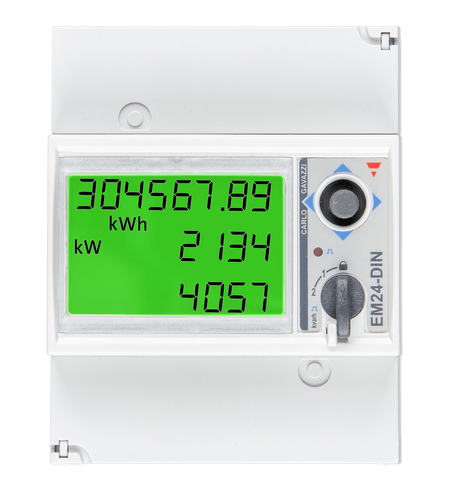

The EM24 is for 3 phase monitoring only.
To measure the power and energy of the whole application at the distribution box. Or to measure the output of a PV Inverter, to display the data on the Color Control GX.
The Energy Meter can be used as a:
- Grid meter, and used as control input for an ESS System.
- Measure the output of a PV Inverter
- Measure the output of a AC Genset
The meter is connected to the Color Control GX. There are two options in its wiring:
- Direct connection, either using the RS485 to USB interface with 1.8m cable length, or the 5.0m cable.
- Wireless connection via Zigbee
Key Features
- Three-phase energy monitoring – Measures up to 65A per phase
- Ethernet connectivity – Enables fast and reliable data transfer
- Versatile applications – Works as a grid meter, PV inverter output meter, or AC genset meter
- Seamless integration with Victron ESS – Optimizes energy storage systems
- Multiple connection options – Supports Ethernet, RS485 to USB (1.8m or 5.0m), or Zigbee
- Remote monitoring via Color Control GX – Provides real-time data visualization
- 5-year warranty – Ensures long-term reliability
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: REL200200100
- GTIN: 8719076051268
- Warranty: 5 Years
- Country of Manufacture: Italy
