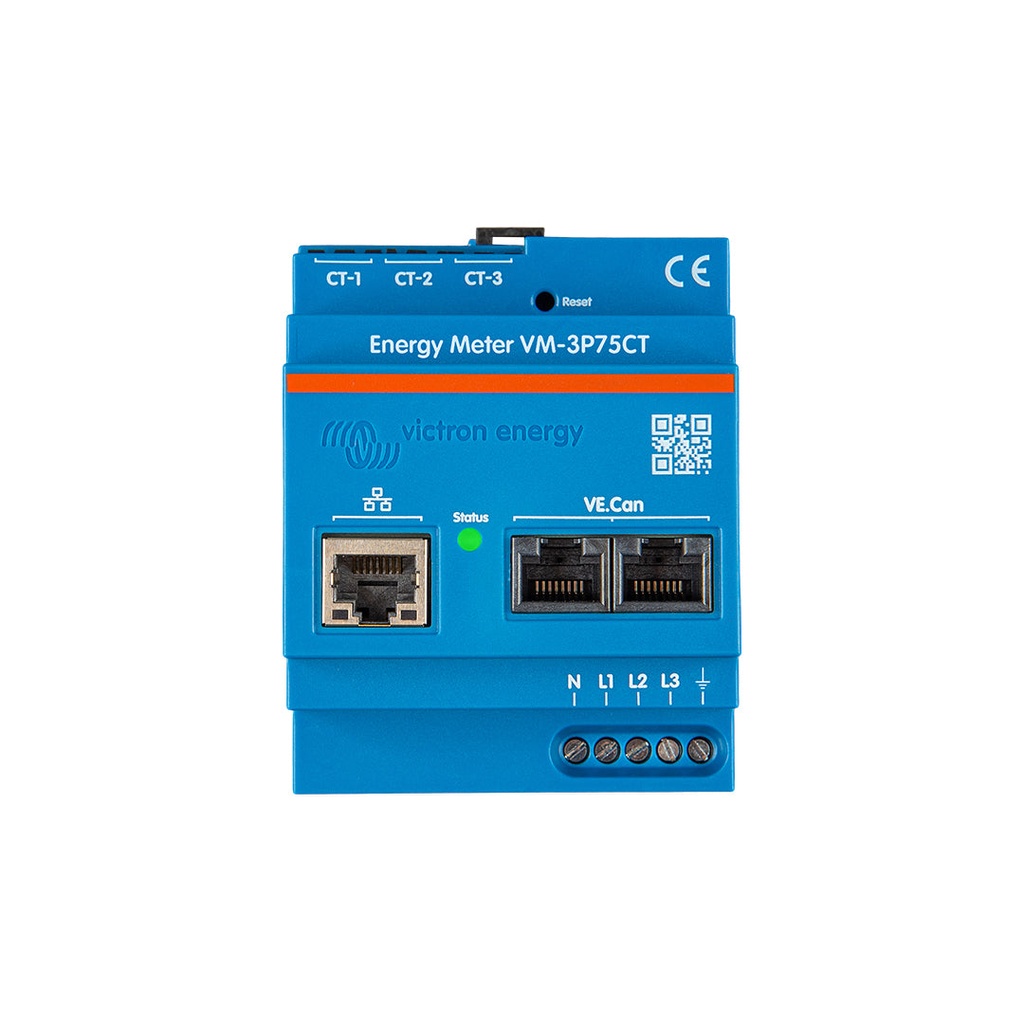

Victron Energy Meter VM-3P75CT REL200300100

Name: Victron Energy Meter VM-3P75CT REL200300100
Brand: Victron Energy
SKU: 119018
Price: 148.99 GBP
Availability: InStock

Victron part no. REL200300100

£148.99In stock · 1 available

Usually dispatched in 1 to 2 working daysUK delivery, priced at checkout

5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy

14-day returnsOn unused standard items

Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.

Book a call

Overview

About this product

Energy Meters are typically used in an Energy Storage System, to measure the power and energy of the entire application at the distribution box and minimises energy import or export to the grid. They can also be used to measure the output of a PV inverter or AC loads and display the data on GX devices such as the Cerbo GX or Ekrano GX and the VRM Portal.

Key Features

Three-phase energy meter with Ethernet and VE.Can communication ports
Designed for measuring power and energy in single- and three-phase applications, such as distribution boxes or PV Inverters
High refresh rate for accurate measurements of RMS power values transmitted over VE.Can or Ethernet
Easy setup with Plug & Play functionality as a grid meter for most systems; configuration via VictronConnect for role changes (Grid Meter, PV Inverter, AC Genset, or AC Load Meter) and manual IP configuration
Remote monitoring available through VictronConnect App, Cerbo GX, Ekrano GX, and VRM Portal
Effortless installation using snap-on type current transformers, eliminating the need to modify existing wiring
Utilises vector registration method, summing the vectors of each phase (L1, L2, and L3) for precise measurements.

Specifications

Model: VM-3P75CT REL200300100
Voltage connection: Direct
Input voltage range L-N: 85 to 265VAC
Input voltage range L-L: 150 to 460VAC
Frequency: 50/60Hz
Current connection: Via current transformers (included - wire length 640mm)
Rated current: 75A
VE.Can communication port: Two RJ45 connectors (VE.Can terminators included)
Ethernet communication port: One RJ45 connector, Modbus UDP
Refresh rate: 100ms
Type: Self-power supply via L1-N
Consumption: 1.45W / 3.1VA
Frequency: 50/60Hz
Material & Colour: Polycarbonate, blue (RAL 5012)
Voltage connection: Screw terminals 0.25 to 1.5mm2 (24 to 16 AWG)
Current transformer connection: Pluggable screw terminals (included)
Protection category: IP20
Weight: 370g (including packaging)
Dimensions (h x w x d): 90 x 71 x 59mm (3.5 x 2.8 x 2.3in)
Indoor/outdoor usage: Indoor only
Operating temperature: From -10 to +55 °C
Storage temperature: From -20 to +70 °C
Relative humidity: < 90 % non-condensing
Altitude: 2000m (6562ft)
Mains supply voltage fluctuations: ±0.1Vin
Overvoltage category: Cat. III
Pollution degree: 2
Safety: EN-IEC 61010-1
