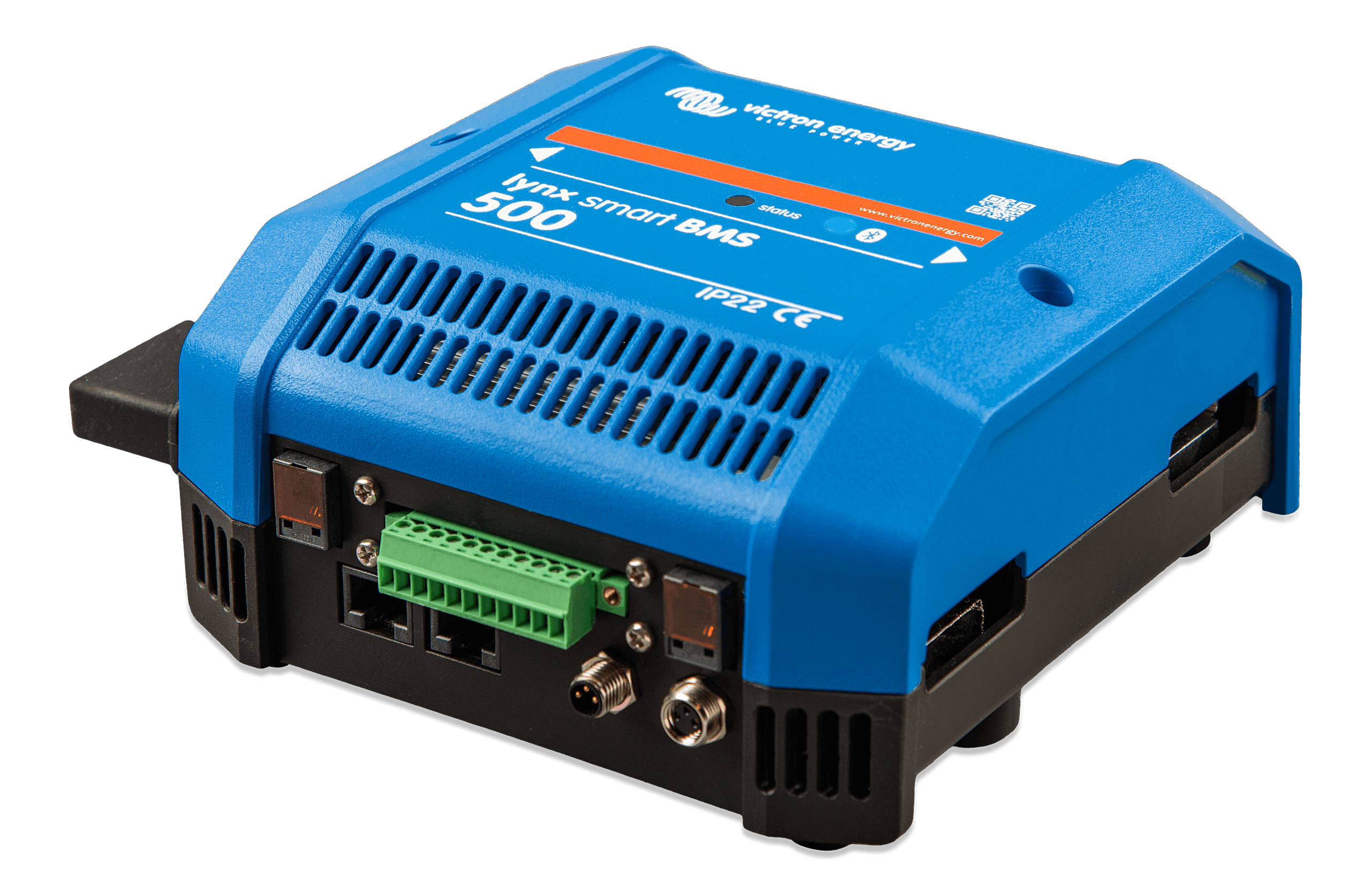

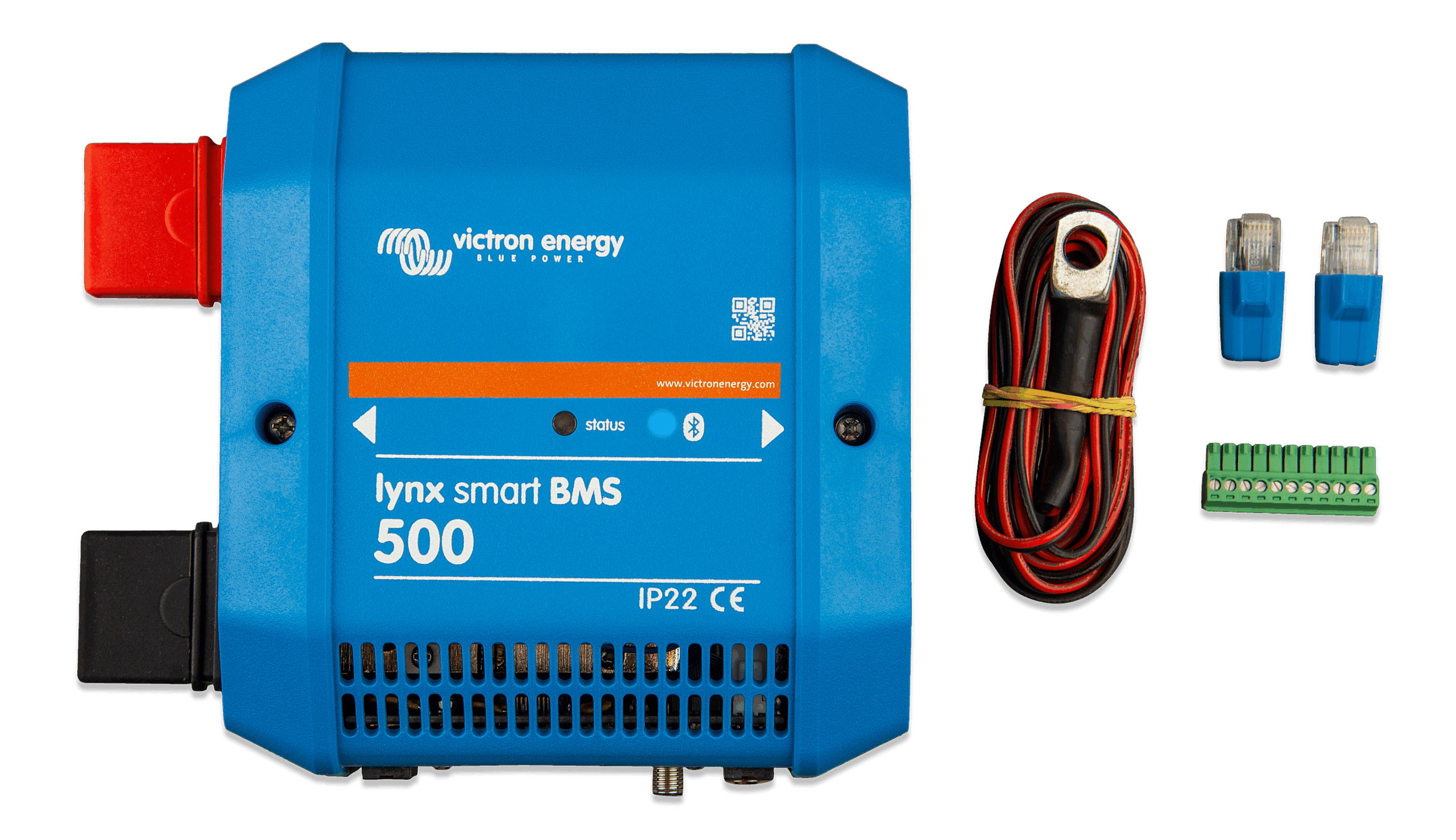

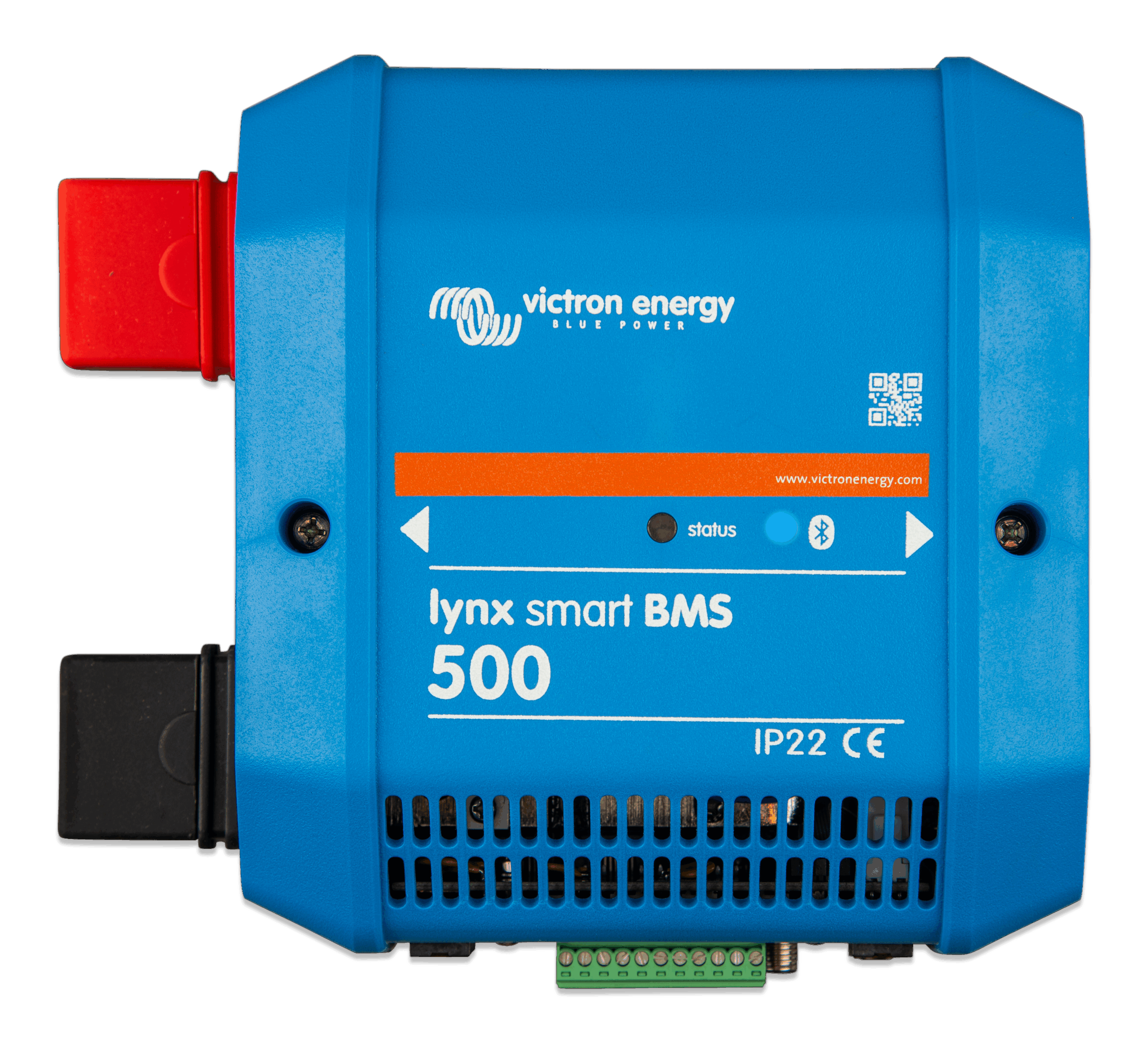

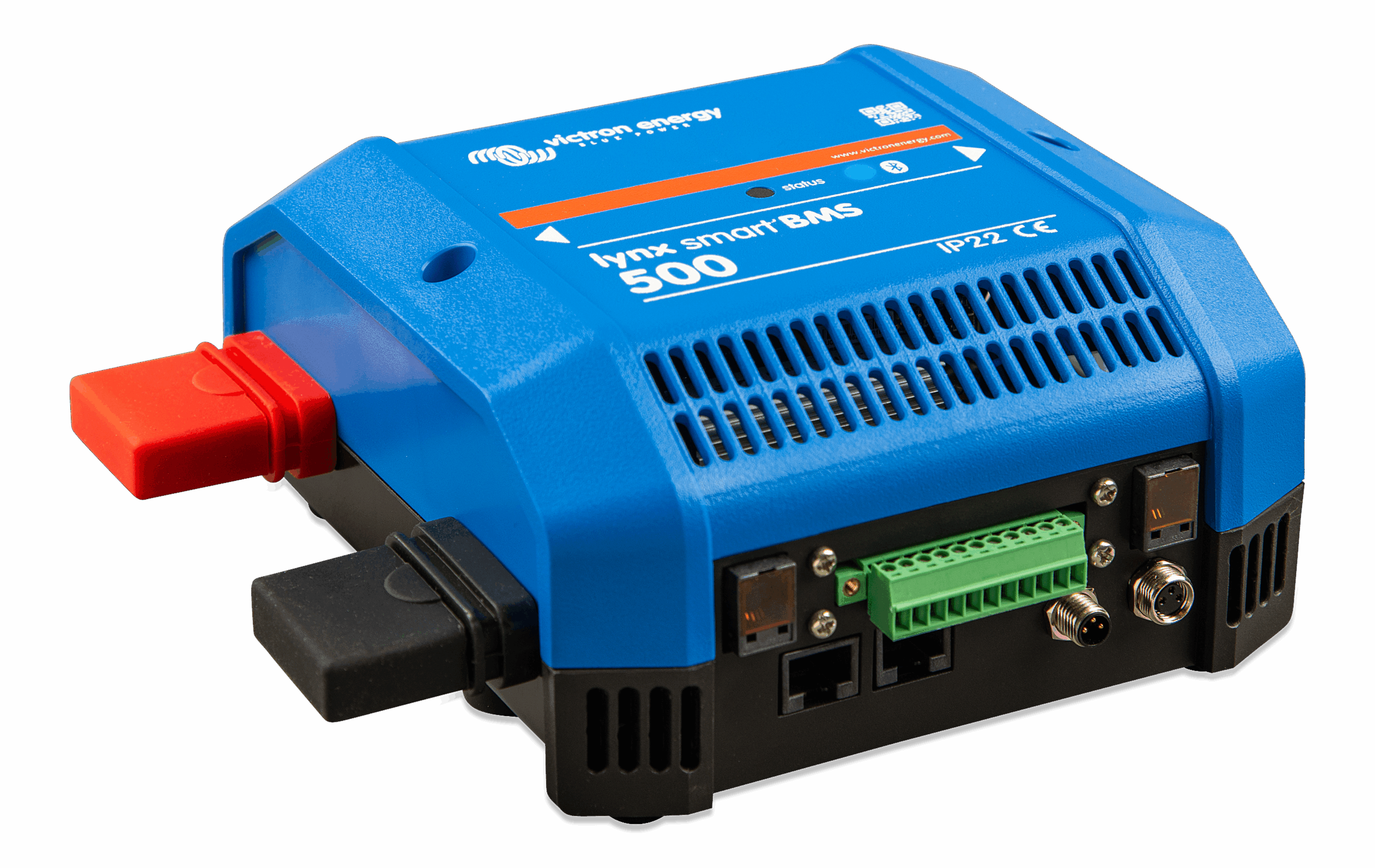

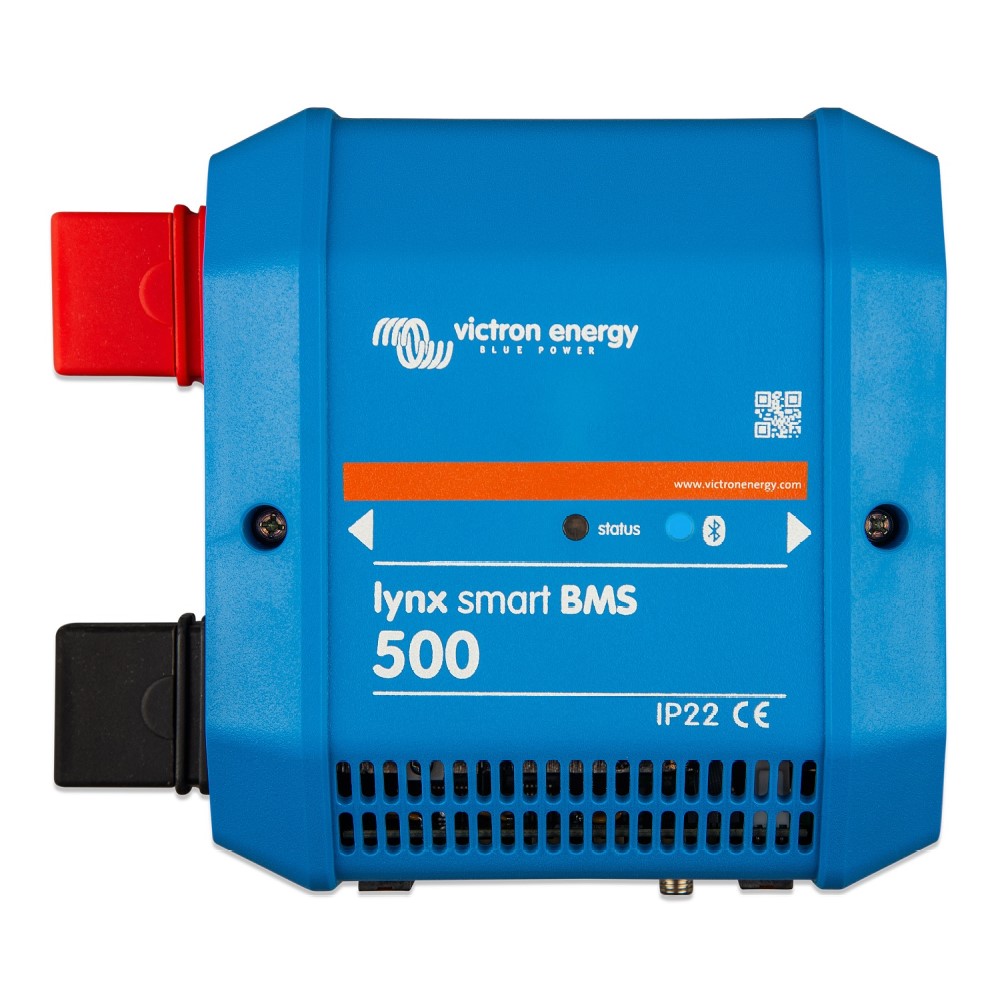

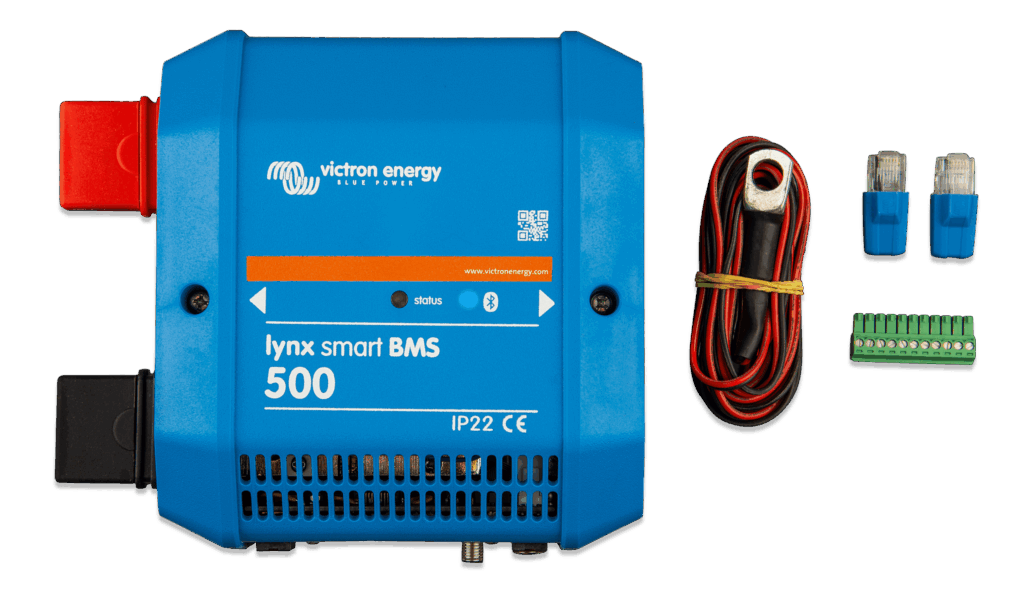

Victron Energy LYN034160200 Lynx Smart BMS 500

Victron part no. LYN034160200

The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option.

£467.99Available to order, usually dispatched in 6 to 10 working days
Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

  • Supply Voltage Range: 9-58Vdc
  • Main Safety Contactor Continuous Current Rating: 500A continuous
  • Reverse Polarity Protection: No
  • Supported System Voltages: 12, 24 or 48V
  • Main Safety Contactor Peak Current Rating: 600A for 5 minutes

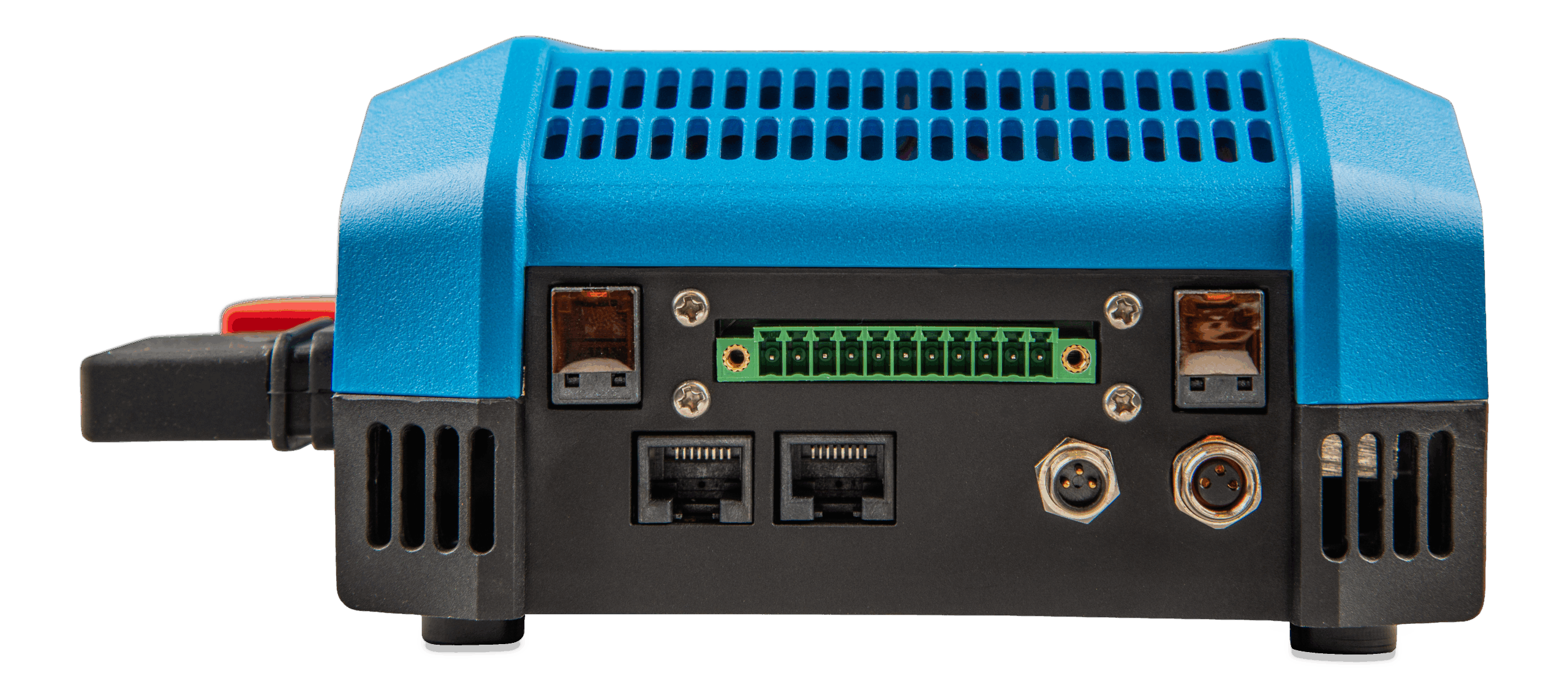

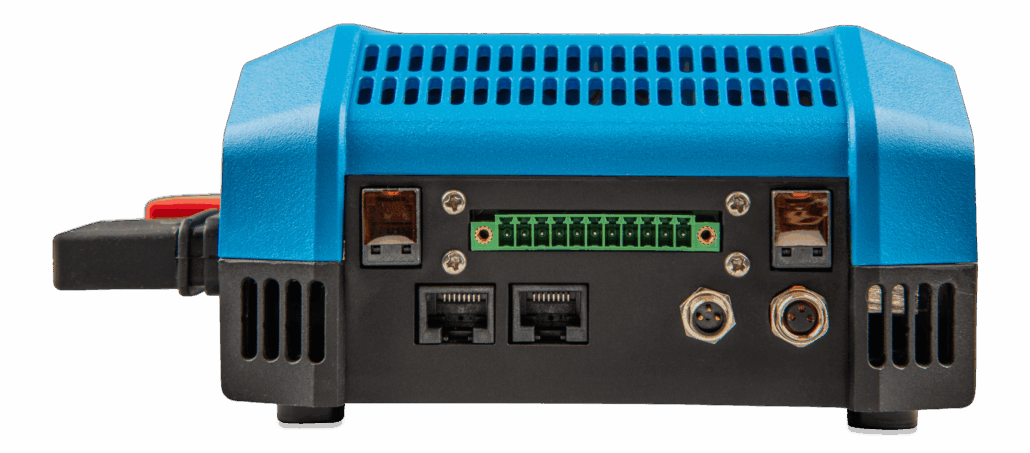

  • Battery BMS Cables Connection: Male and female circular 3-pole connector with M8 screw ring
  • VE.Can Connection: RJ45 and RJ45 terminator
  • Busbar Connection: M8
  • AUX Output Maximum Current Rating: 1.1A continuous, protected by resettabel fuse
  • Power Consumption in Active Mode: Approximately 2.6W (200mA at 13V) depending on the state of the relays
  • Power Consumption Hibernate or Standby Mode: Approximately 10.4mW (0.8mA at 13V)

Datasheet

iOS App Android App Windows App Apple Mac App

The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. Its main features are:

  • Built-in 500A contactor, used as a fall-back safety mechanism and also available as a remote controllable main systems switch
  • Battery monitor, indicating state of charge percentage and more data.
  • Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
  • Bluetooth for use with the VictronConnect App, for setup and monitoring.
  • Local and remote monitoring using a Victron GX device, for example the Cerbo GX
  • The Lynx Smart BMS is part of the modular Lynx Distribution system.
