Description
Built for long-term reliability, the Phoenix Inverter 48/375 features overload, temperature, and short-circuit protection, ensuring safe operation even in demanding environments. Its Eco mode enhances efficiency by switching to standby mode when no power is needed, reducing battery drain and automatically reactivating when demand returns.
The VE.Direct communication port enables seamless monitoring and customisation through the VictronConnect app, available for PCs and mobile devices. This allows users to adjust settings, view alarms, and optimise power output for their specific needs.
Key Features
Phoenix Inverter VE.Direct
Inverters allow you to power domestic equipment – requiring 230V/120V AC – using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.
Models
250VA, 375VA, 500VA, 800VA, 1200VA
Highly Reliable – built for the years ahead
Phoenix Inverters are built to last. They feature sophisticated full-bridge and toroidal transformer topology – which is suitable for powering sensitive electronics. They are overload, temperature, and short-circuit protected.
Full bursts – High Peak output
Some electronic devices – particularly those which have an electric motor – require short burst of energy on start-up which is much higher than their rated power consumption. No problem – the Phoenix inverter has industry-leading peak-power capability.
Intelligent alarms, shut-downs, and re-starts
A high power draw on start-up can trigger false alarms, and shut-downs. Phoenix makes allowance for this and only shuts down in cases of persistent overload. Intelligently – shut downs will be followed by a series of re-starts – to eliminate "false alarms".
Conserve power with Eco mode
In Eco mode the inverter shuts down when no power is required. Phoenix senses the output socket every couple of seconds and automatically turns back on if power is again required.
User-configurable settings
Phoenix has a communication port providing access to status information, alarms and automatic user-configurable low-voltage shut downs. Shut downs will be followed by a series of intelligent re-start attempts. User settings can be accessed from your computer or mobile device via VictronConnect – our free-to-use app.
Specifications
- Brand: Victron Energy

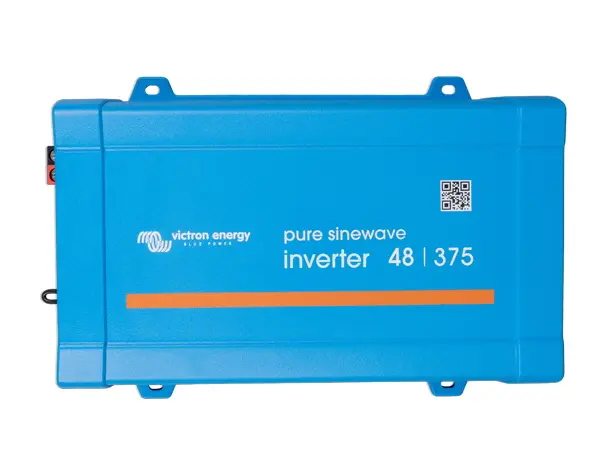

- Model: Phoenix Inverter 48/375
- Manufacturer Part Number: PIN481371400
- Input Voltage: 48V DC
- Output Voltage: 230V AC
- Power (VA): 375VA
- Peak Power (W): 700W
- IP Rating: IP21
- Efficiency: High efficiency with low standby consumption
- Eco Mode: Yes
- Communication: VE.Direct port for remote monitoring
- Plug Type: UK 3-Pin
- Dimensions (Including Terminals): Compact and lightweight design
- Warranty: 5 Years
