Description

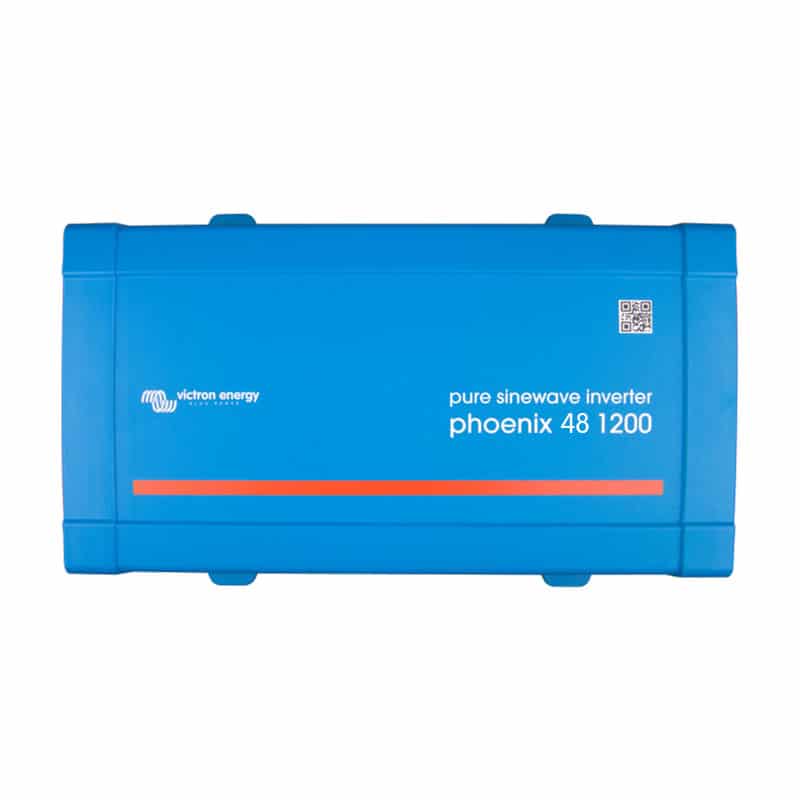

The Victron Phoenix 48/1200 120V VE.Direct Inverter with a NEMA GFCI socket allows you to power a range of domestic equipment requiring 120V AC, while utilizing 48V DC batteries, making it suitable for leisure, automotive, or off-grid applications. The NEMA GFCI socket ensures safety by preventing electric shock in case of a ground fault, making it ideal for environments where water or moisture may be present.
Like other Victron Phoenix inverters, this unit features the VE.Direct communication port, which enables remote monitoring and configuration via VictronConnect using a Bluetooth Smart dongle or VE.Direct to USB interface cable. You can easily configure the inverter for low battery voltage alarms, cut-off levels, and restart settings.
The inverter is equipped with high start-up power, capable of starting devices that require high inrush currents such as LED lamps, halogen lamps, or electric tools. It also features ECO mode, where the inverter switches to standby when the load decreases below a preset level, saving power.
The Phoenix 48/1200 VE.Direct Inverter is designed for reliability and protection, with features like short circuit protection, overload protection, and overheating protection. These features, combined with its efficient design, make this inverter a robust choice for a variety of applications.
Key Features
- NEMA GFCI socket for safety in damp or wet conditions
- VE.Direct communication port for real-time monitoring and configuration via VictronConnect
- Fully configurable with options for low battery voltage alarms, cut-off levels, and restart settings
- High start-up power to support devices with high inrush current
- ECO mode: Automatically switches the inverter to standby mode when the load is below 15W (adjustable)
- Remote on/off: Control the inverter remotely via a two-pole connector
- LED diagnosis: Provides status information and troubleshooting aids
- Short circuit protection, overheating protection, and overload protection
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: PIN482122510
- GTIN: 8719076056089
- Voltage: 48V DC
- Continuous Output Power: 1200VA
- Peak Power: 2400W
- Output AC Voltage: 120V
- Frequency: 50Hz or 60Hz
- Efficiency: 90%
- Bluetooth Enabled: No
- Plug Type: NEMA GFCI
- Protection Category: IP21
- Dimensions (HxWxD): H105 x W216 x D305 mm
- Weight: 5.5 kg
- Warranty: 5 Years
- Country of Manufacture: China
