Description

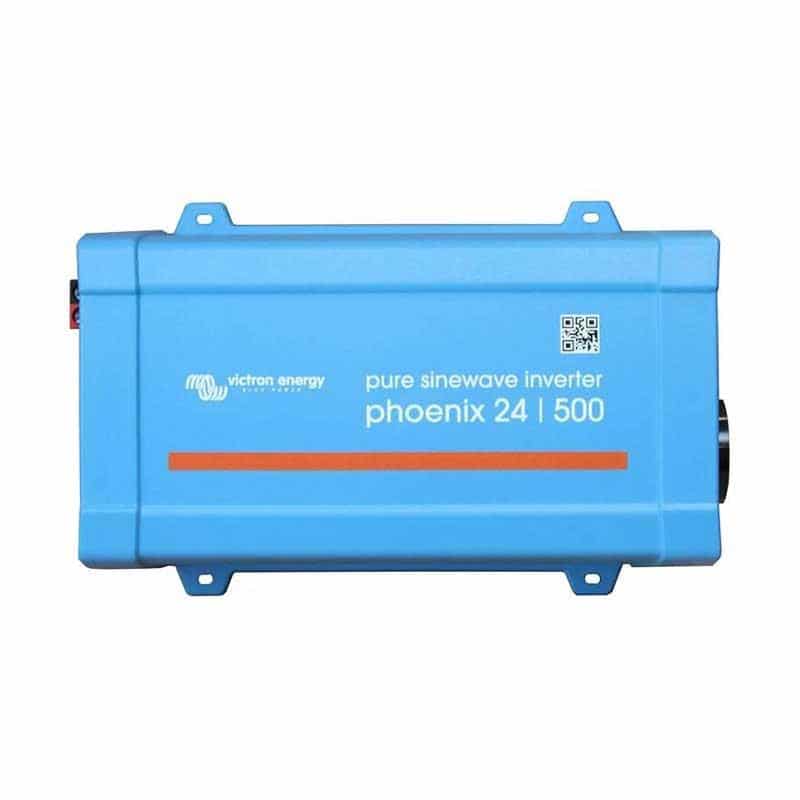

The Victron Phoenix Inverter 24/500 230V VE.Direct SCHUKO is an excellent choice for powering 230V AC devices using 24V DC battery systems. With its ECO mode, high start-up power, and reliable performance, this inverter is suitable for a wide range of applications, including off-grid systems, mobile power setups, and emergency backup solutions. Its Schuko plug ensures compatibility in regions using this standard, making it a versatile option for international users.
Key Features
- VE.Direct Communication Port:Connect to computers (using the VE.Direct to USB interface cable) or Apple/Android smartphones, tablets, and laptops (using the VE.Direct Bluetooth Smart dongle) for easy monitoring and configuration.
- Fully Configurable:Low Battery Voltage Settings: Adjustable alarm trip and reset levels.Dynamic Cut-off: Load-dependent cut-off level ensures efficient power management.Voltage and Frequency Settings: Output voltage of 210–245V, selectable frequency of 50 Hz or 60 Hz.
- ECO Mode:The inverter enters standby mode when the load is below 15W and briefly switches on at regular intervals to check if the load exceeds the preset level. If it does, the inverter stays on.
- Monitoring:View in- and output voltage, % load, and alarm status to keep track of system performance.
- High Start-Up Power:The inverter is capable of handling high start-up loads for devices like LED lamps, halogen lamps, or electric tools.
- Reliability and Protection:Full bridge plus toroidal transformer topology ensures long-lasting durability.Short-circuit protection and overheating protection safeguard the unit against overloads and high ambient temperatures.
Installation and Setup
- Remote On/Off:Connect a remote on/off switch to the two-pole connector or between the battery plus and the left contact of the two-pole connector for easy control.
- DC Connection:Screw terminal connections make installation simple and do not require special tools.
- VictronConnect:The inverter can be monitored and controlled using the VictronConnect app (via the Bluetooth Smart Dongle) to get live status updates and configure settings.
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: PIN241501200
- GTIN: 8719076056010
- Voltage: 24V DC
- Continuous Output Power: 500VA
- Peak Power: 900W
- Output AC Voltage: 230V
- Efficiency: 90%
- Protection Category: IP21
- Plug Type: Schuko
- Dimensions (HxWxD): H86 x W172 x D275 mm
- Weight: 3.9 kg
- Warranty: 5 Years
- Bluetooth Enabled: No
- Country of Manufacture: China
