Description

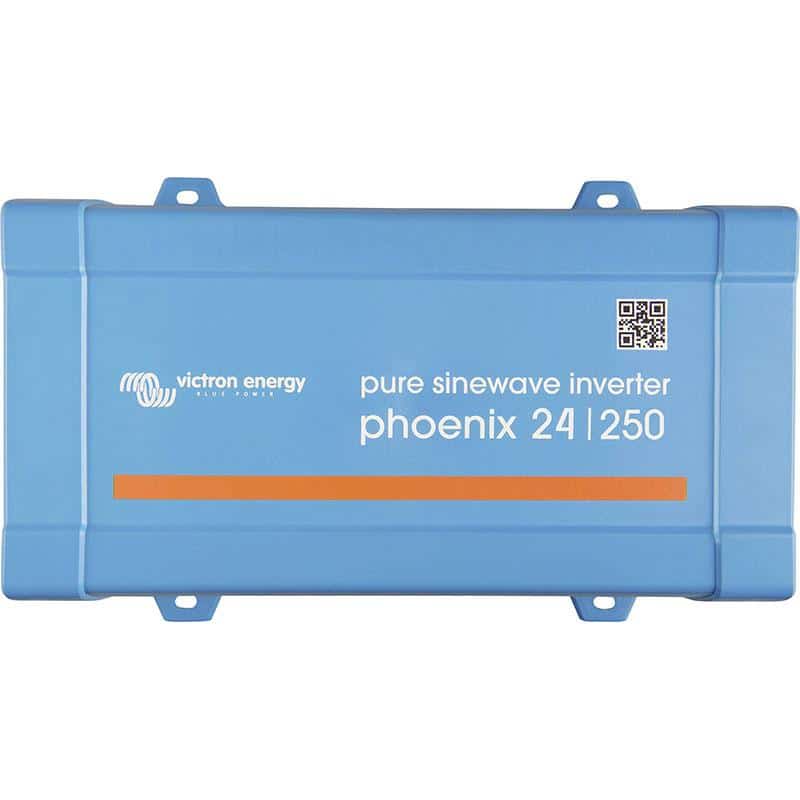

The Victron Phoenix 24/250 120V VE.Direct NEMA 5-15R Inverter is a compact and reliable inverter that transforms 24V DC power into 120V AC power, suitable for use in a variety of off-grid applications, including mobile homes, caravans, or boats. It is capable of powering small devices such as LED lamps, power converters, or basic electronics.
Built with a toroidal transformer, this inverter ensures a stable output with clean sinusoidal wave power. The VE.Direct communication port allows for easy connection to a smartphone, tablet, or computer (with a USB interface cable), enabling remote monitoring and configuration.
The inverter offers essential features like ECO mode, which helps reduce energy consumption by switching the inverter to standby when the load is below a preset level, and the low battery voltage alarm and cut-off features, which protect against excessive battery discharge.
It is designed for long-lasting use with proven reliability, short-circuit protection, and overheating safeguards, making it a dependable choice for powering sensitive equipment or appliances.
Key Features
- VE.Direct Communication Port: Enables remote monitoring and configuration through Bluetooth or a computer (USB interface needed).
- ECO Mode: Automatically enters standby mode when load drops below a preset value, reducing energy consumption.
- High Start-Up Power: Sufficient to power devices that require high inrush currents, such as LED power converters or small electric tools.
- Low Battery Protection: Includes adjustable low voltage cut-off and alarm settings to prevent deep battery discharge.
- Remote On/Off: Allows control via a two-pole connector or battery terminal switch.
- NEMA 5-15R Output Socket: Suitable for standard 120V AC appliances in North America.
- Short-Circuit Proof: Provides protection against overloads, ensuring the system operates safely in various conditions.
- LED Diagnosis: Built-in LED for easy status indication and troubleshooting.
- Automatic Transfer Switch Compatibility: Compatible with Filax Automatic Transfer Switch for seamless switchover between AC sources (less than 20 milliseconds).
Specifications
- Feature: Specification
- Brand: Victron Energy
- Manufacturer Part Number: PIN242510500
- Voltage: 24V DC
- Continuous Output Power: 250VA
- Peak Power: 500VA
- Output Voltage: 120V AC
- Frequency: 50 Hz or 60 Hz
- ECO Mode: On/Off, with adjustable sense level
- Communication: VE.Direct Port (Bluetooth Smart or USB Interface required)
- Dimensions (H x W x D): 170 x 142 x 70mm
- Weight: 2.5 kg
- Warranty: 5 years
