Description

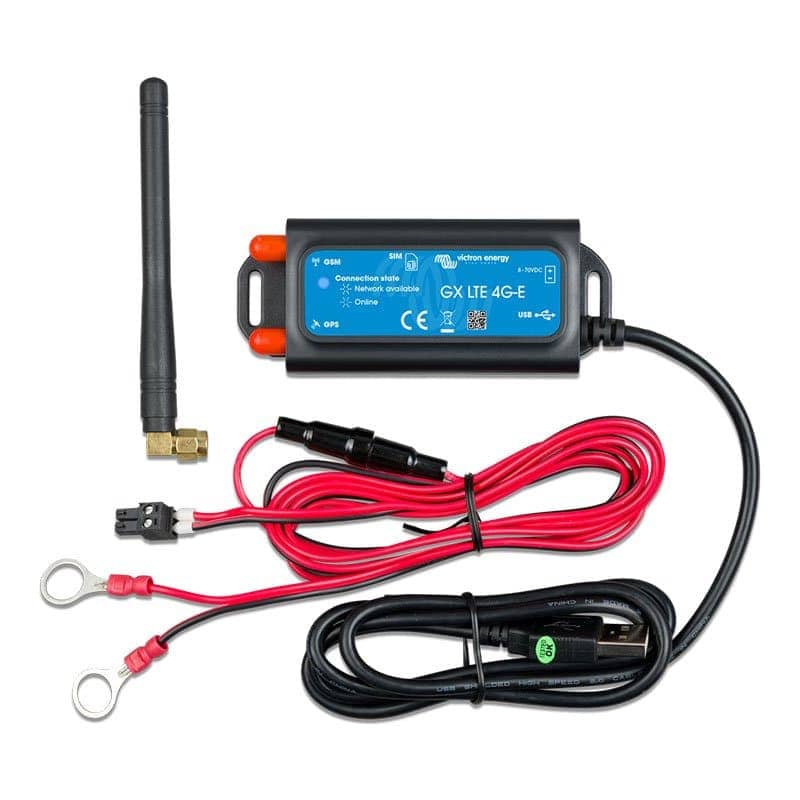

The GX LTE 4G-E is a cellular modem designed for use with Victron Energy's GX range of monitoring products. It ensures that your system stays connected to the VRM Portal, providing remote monitoring capabilities when Wi-Fi or hard-wired internet connections aren't available. Supporting 2G, 3G, and 4G networks, the GX LTE 4G-E is ideal for remote locations or mobile systems where traditional internet access isn't feasible. This model, part number GSM100100400, is specifically tailored for use in the EMEA region, Korea, and Thailand.
With a built-in GPS receiver, the GX LTE 4G-E allows for tracking and the ability to set up geo-fences when paired with the optional GPS antenna (sold separately). The system can be monitored and controlled via the VRM Portal, giving you complete visibility over your Victron Energy devices. The included mini rod antenna supports 2G/3G/4G networks and is suitable for indoor use.
Please note that this device is intended for internet access only for the GX device itself. Sharing the connection with other devices (laptops, phones, etc.) is not supported. For connecting other devices, a mobile router like the GlocalMe Mini Turbo U30 is recommended.
Key Features
- Mobile internet connection for remote monitoring via VRM Portal
- Supports 2G, 3G, and 4G networks
- Built-in GPS receiver for system tracking and geo-fencing
- Compatible with Victron Energy's GX devices
- Includes mini rod antenna for 2G/3G/4G (indoor use)
- Power consumption in idle mode <1W
- Data transmission speeds:4G: 10 Mbps download, 5 Mbps upload3G: 42 Mbps download, 5.76 Mbps upload2G: 236.8 Kbps download/upload
- USB communication port for easy connection to GX device
- Includes DC power cable with inline fuse
- 5-year warranty
Specifications
- Feature: Specification
- Model Part Number: GSM100100400
- Supply Voltage Range: 9-70V DC
- Power Consumption (Idle): <1W
- Power Consumption (2G/3G/4G): 2.5W
- Power Consumption (with GPS): +0.4W
- Operating Temperature Range: -40 to +50°C
- Power Cable Length: 1.4m
- USB Cable Length: 1m (fixed)
- LTE Antenna Connector: SMA Female
- GPS Antenna Connector: SMA Female
- SIM Card: Mini SIM (1.8V & 3V)
- Regions: EMEA, Korea, Thailand
- Supported LTE Bands: 1, 3, 5, 7, 8, 20, 38, 40, 41
- Data Transmission (LTE): 10 Mbps download, 5 Mbps upload
- Data Transmission (3G): 42 Mbps download, 5.76 Mbps upload
- Data Transmission (2G EDGE): 236.8 Kbps download/upload
- Dimensions (L x W x H): 106 x 42.5 x 22 mm
- Weight: 0.08 kg
- Status Indicator: Blue LED
