Victron Energy GX LTE 4G-A GSM100200400

Victron part no. GSM100200400

£180.84Available to order, usually dispatched in 6 to 10 working days
Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

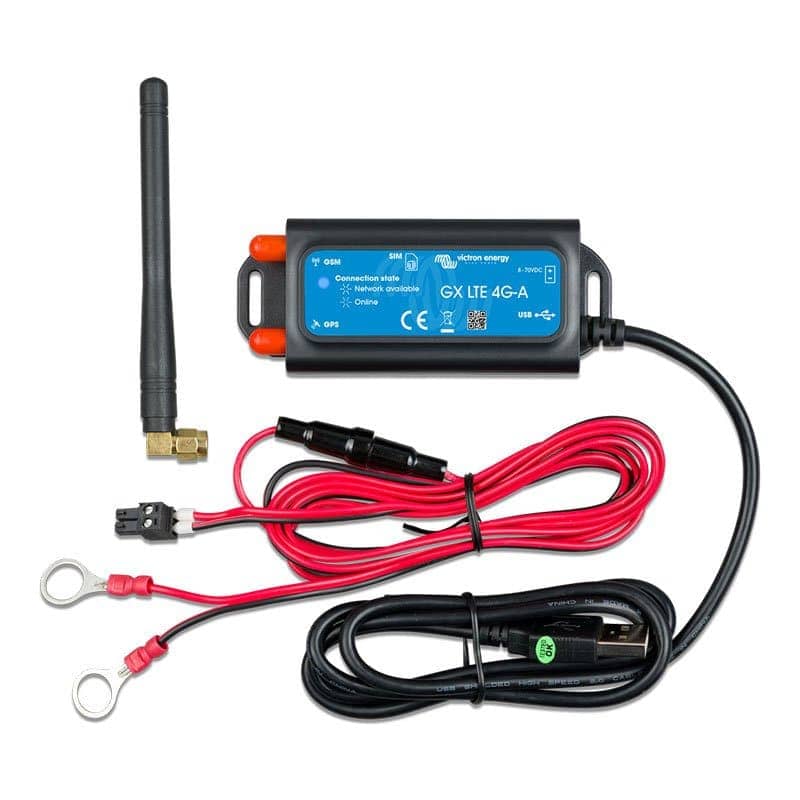

The GX LTE 4G-A is a cellular modem designed for use with Victron Energy's GX range of monitoring products. It ensures that your system stays connected to the VRM Portal, providing remote monitoring capabilities when Wi-Fi or hard-wired internet connections aren't available. Supporting 2G, 3G, and 4G networks, the GX LTE 4G-E is ideal for remote locations or mobile systems where traditional internet access isn't feasible. This model, part number GSM100200400, is specifically tailored for use in the NorthAmerica.

With a built-in GPS receiver, the GX LTE 4G-E allows for tracking and the ability to set up geo-fences when paired with the optional GPS antenna (sold separately). The system can be monitored and controlled via the VRM Portal, giving you complete visibility over your Victron Energy devices. The included mini rod antenna supports 2G/3G/4G networks and is suitable for indoor use.

Please note that this device is intended for internet access only for the GX device itself. Sharing the connection with other devices (laptops, phones, etc.) is not supported. For connecting other devices, a mobile router like the GlocalMe Mini Turbo U30 is recommended.

Key Features

  • Mobile internet connection for remote monitoring via VRM Portal
  • Supports 2G, 3G, and 4G networks
  • Built-in GPS receiver for system tracking and geo-fencing
  • Compatible with Victron Energy's GX devices
  • Includes mini rod antenna for 2G/3G/4G (indoor use)
  • Power consumption in idle mode <1W
  • Data transmission speeds:4G: 10 Mbps download, 5 Mbps upload3G: 42 Mbps download, 5.76 Mbps upload2G: 236.8 Kbps download/upload
  • USB communication port for easy connection to GX device
  • Includes DC power cable with inline fuse
  • 5-year warranty

Specifications

  • Part Number: GSM100200400
  • Region: North America
  • Module Used: SIMCom SIM7600A
  • Supported LTE Bands: 2, 4, 12
  • Supply Voltage Range: 8 - 70VDC
  • Power Draw: 2.5W (data transfer), <1.0W (idle)
  • Operating Temperature: -40 to +50°C
  • Communication Port: USB-A connector (fixed 1.0m cable)
  • SIM Card Type: Regular Mini SIM (1.8V and 3V)
  • Dimensions (L x W x H): 106 × 42.5 × 22 mm
  • Weight: 0.08 kg
  • Compliance: EN 60335-1, ECE R10-5, QM EN 9001:2015
