Description

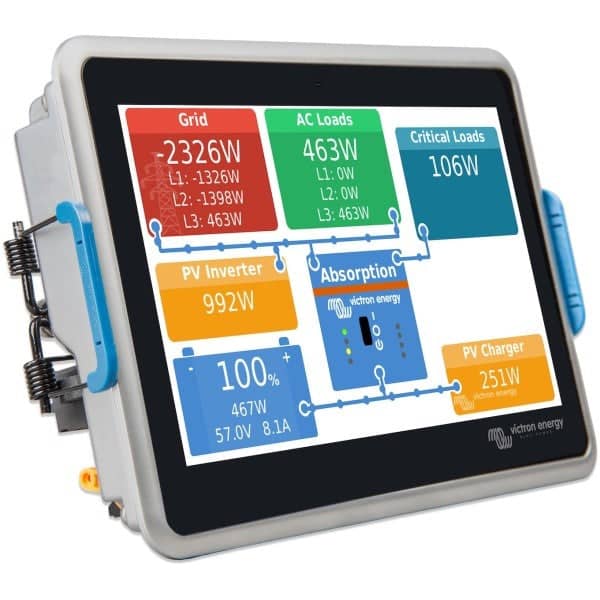

The Victron Energy Ekrano GX offers a complete monitoring and control solution with its waterproof 7-inch display and fully encapsulated GX device. Designed for demanding environments like marine vessels and outdoor installations, the Ekrano GX allows you to monitor battery status, power consumption, and other system parameters with ease. With support for up to 25 VE.Direct devices, the Ekrano GX is ideal for large, complex systems. It eliminates the need for an HDMI connection, enhancing reliability by removing potential failure points between the display and computer.
The integrated 7-inch touchscreen, similar to that of the GX Touch 70, delivers user-friendly control and can be disabled for public installations to prevent unauthorized adjustments. With remote control capabilities through Victron’s Remote Management (VRM) portal and local network access, you can manage the system from any location. Compatible with Bluetooth sensors from RUUVI and MOPEKA, it offers flexibility for comprehensive system monitoring. Designed for easy flush installation, the IP67-rated front guarantees protection against moisture, dust, and other environmental factors.
Key Features
- Waterproof 7-Inch Display: Fully encapsulated for maximum protection in demanding settings, with touchscreen disable option for public installations.
- Enhanced Monitoring & Control: Monitor battery, power consumption, generator, PV production, and more with the Victron Remote Management (VRM) portal.
- Remote Console Capability: Full remote functionality for monitoring, control, and diagnostics, accessible over the internet or LAN/WLAN.
- Supports up to 25 VE.Direct Devices: Ideal for complex installations requiring multiple device connectivity.
- Bluetooth-Ready: Wireless sensor compatibility for additional monitoring flexibility via Bluetooth adapters.
- User-Friendly Installation: Simple to install, with integrated touchscreen and included mounting material for secure, flush fitting.
Specifications
- Model: Victron Energy Ekrano GX
- Screen Size: 7 inches
- Weight: 0.95 kg
- Dimensions (L x W x H): 11.5 x 26.0 x 30.0 cm
- Battery Voltage Range: 8-70 VDC
- Bluetooth Support: Yes
- Protection Rating: IP67 (front)
- Communication Ports: VE.Direct, VE.Bus, VE.CAN, Ethernet, ModBus TCP, CAN, WiFi, Bluetooth, USB
- Installation: Flush mount with included mounting hardware
- Compatible Sensors: RUUVI, MOPEKA (via Bluetooth adapters)
