Description

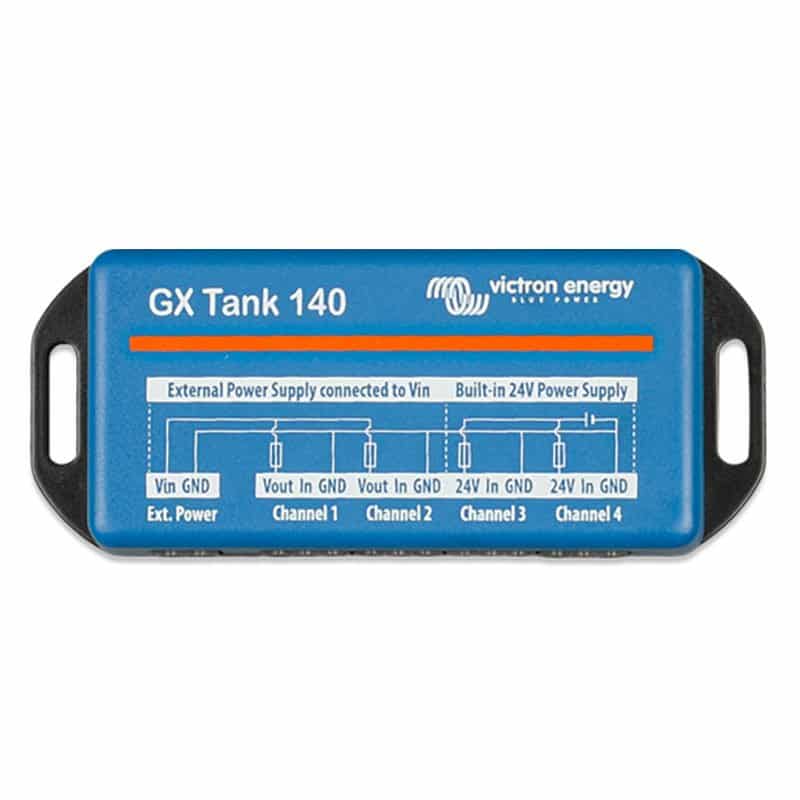

The Victron GX Tank 140 is the ultimate solution for monitoring multiple tank levels within your system. Designed to work seamlessly with Victron's GX devices, this accessory can read up to four tank level sensors simultaneously, displaying accurate data locally on your system. Compatible with both current senders (4-20 mA) and voltage senders (0-10 V), it offers maximum flexibility for various tank types and applications.
This device connects to the GX device through USB, which also supplies power, simplifying the installation process without the need for additional power wires. It features two inputs that provide a 24V power supply, while the other two channels require an external power source, with a dedicated power in terminal and fused outputs to support this.
Customizable configurations allow you to set upper and lower limits, making it adaptable to senders that operate on a partial scale, such as 0 to 5V. Additionally, the damping feature averages readings over a user-defined period (1 to 60 seconds), providing a stable output without fluctuations.
Ideal for marine applications, the GX Tank 140 can transmit tank levels over the NMEA 2000 network, enabling display on MFDs (Multi-Function Displays). It also includes fault detection capabilities, alerting you to any wiring issues or sensor faults by raising alarms when values are out of range.
Key Features
- Supports up to 4 tank level sensors: Compatible with both 4-20 mA and 0-10 V senders.
- Seamless integration: Works with Victron GX devices like the Cerbo GX for local and remote monitoring.
- Plug-and-play installation: Connects and powers via USB, eliminating the need for additional power cables.
- Customizable limits and damping: Configurable upper and lower limits and damping period (1-60 seconds) for accurate readings.
- Fault detection: Raises alarms for faulty sensors or wiring issues.
- NMEA 2000 compatibility: Transmits tank levels on marine networks for display on MFDs.
- Versatile applications: Suitable for marine, RV, and off-grid systems.
Specifications
- Part Number: BPP920140100
- Compatible Devices: Victron GX devices (e.g., Cerbo GX)
- Number of Inputs: 4 (2 with 24V supply, 2 with external power)
- Input Type: 4-20 mA (current), 0-10 V (voltage)
- Power Supply: Via USB from GX Device
- Damping Period: Configurable from 1 to 60 seconds
- Alarm Detection: Yes (Out of range and faulty sensor detection)
- Communication: USB connection to GX Device
- NMEA 2000 Support: Yes (for marine applications)
- Dimensions (L x W x H): 106 × 42.5 × 22 mm
- Weight: 0.08 kg
- Compliance: EN 60335-1, ECE R10-5, QM EN 9001:2015
