Description
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

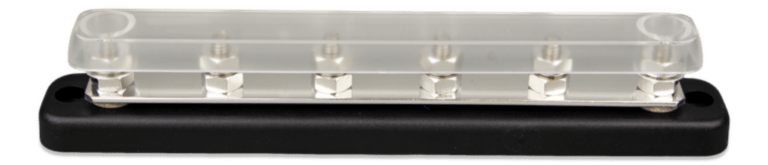

Victron offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
Available models:
- 150A / 70V – 4 high current connections
- 150A / 70V – 6 high current connections
- 250A / 70V – 4 high current connections
- 600A / 70V – 4 high current connections and 8 low current connections
- 600A / 70V – 8 high current connections and 8 low current connections
For more technical information and for the busbar dimensions see the datasheet.
| Brand | Victron Energy |
|---|---|
| Manufacturer Part Number | VBB115060020 |
| GTIN | 8719076052203 |
| Maximum Current | 150A |
| Maximum Voltage | 70VDC |
| Terminal Diameter | 6.35mm |
| Terminal Height | 17mm |
| Dimensions | H45 xW 231.7 x D31.8mm |
| Weight | 0.2Kg |
| Warranty | 5 Years |
| Country of Manufacture | Taiwan |
