Description

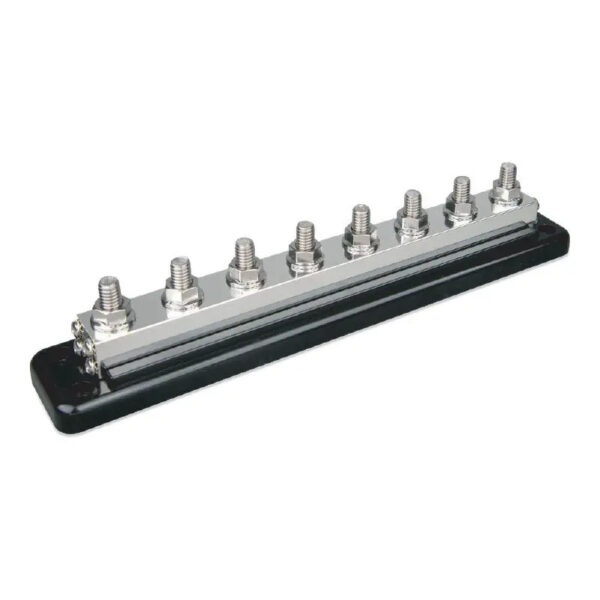

Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.
Victron offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.
Available models:
- 150A / 70V – 4 high current connections
- 150A / 70V – 6 high current connections
- 250A / 70V – 4 high current connections
- 600A / 70V – 4 high current connections and 8 low current connections
- 600A / 70V – 8 high current connections and 8 low current connections
For more technical information and for the busbar dimensions see the datasheet.
| Brand | Victron Energy |
|---|---|
| Manufacturer Part Number | VBB160080010 |
| GTIN | 8719076052234 |
| Maximum Current | 600A |
| Maximum Voltage | 70VDC |
| Terminal Diameter | 9.53mm |
| Terminal Height | 19mm |
| Dimensions | H65 x W327 x D86mm |
| Weight | 1.3Kg |
| Warranty | 5 Years |
| Country of Manufacture | Taiwan |
