Description

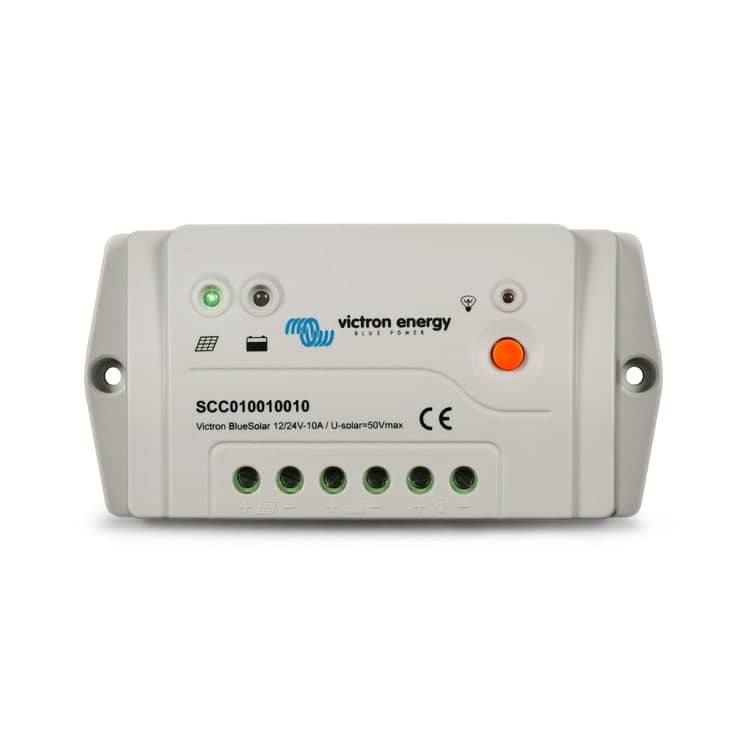

The BlueSolar PWM-Pro features three-stage battery charging (bulk, absorption, float) with programmable settings, enabling you to fine-tune charging profiles to suit your battery type. It also includes an integrated battery monitor function (when used with the Remote Panel) to track the state of charge and ensure optimal battery health. The load output has low voltage disconnect and manual control, preventing over-discharge. Protection features include overload, short circuit, and reverse polarity safeguards, ensuring safe operation of the solar system. An optional external temperature sensor is available for added monitoring accuracy.
Key Features
- Fully Programmable Lighting Control Function – Customizable lighting control for your specific needs.
- Three-Stage Battery Charging – Bulk, absorption, and float charging, fully programmable for optimal battery health.
- Integrated Battery Monitor Function – Monitors the state of charge (requires Remote Panel for display).
- Load Output with Low Voltage Disconnect – Prevents over-discharge by disconnecting the load at a pre-set voltage.
- Manual Control of Load Output – Flexible control of load output settings.
- External Temperature Sensor (Optional) – For precise battery temperature monitoring.
- Overload & Short Circuit Protection – Protects your system from damage caused by overload or short circuits.
- Reverse Polarity Protection – Safeguards against incorrect connections of the solar array or battery.
- IP30 Protection – Dust-resistant, ideal for indoor use.
- 5-Year Warranty – Reliable long-term performance and peace of mind.
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: SCC010010010
- GTIN: 8719076025283
- Voltage: 12/24V
- Rated Charge Current: 10A
- Protection Category: IP30
- Bluetooth Enabled: No
- Dimensions: H138 x W70 x D37mm
- Weight: 0.13kg
- Warranty: 5 Years
- Country of Manufacture: China
