Description

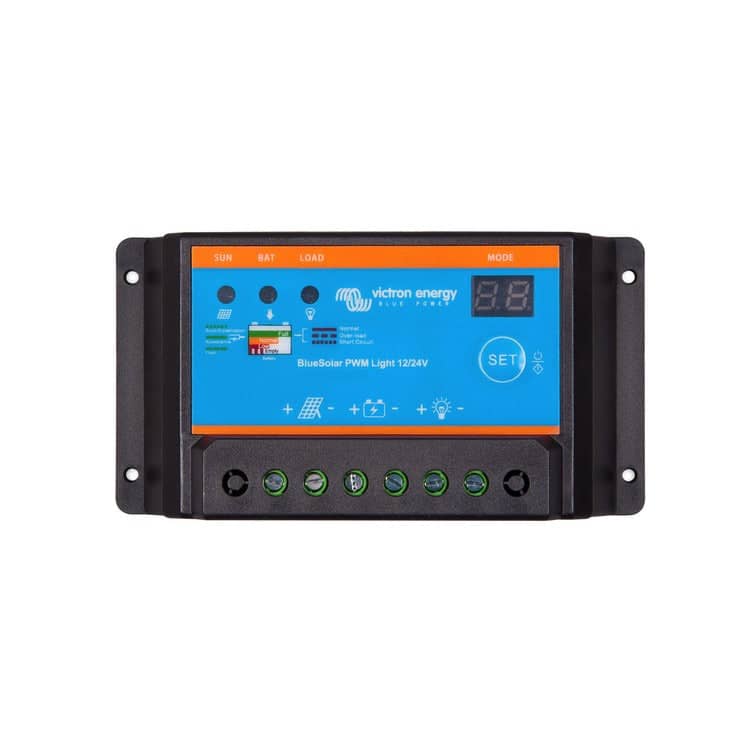

The Victron BlueSolar PWM-Light Charge Controller 12/24V-10A is an ideal solution for solar-powered lighting systems, offering efficient charging and load management for 12V and 24V systems. With a two-digit seven segment display, this controller ensures easy status monitoring and simple setup. Designed for solar lighting applications, it also provides features like lighting control with a timer, and low battery voltage disconnect to ensure optimal battery protection.
Key Features
- Load Output with Low Battery Voltage Disconnect – Prevents battery over-discharge by disconnecting the load when voltage drops to a pre-set level.
- Lighting Control Function – Simple timer settings for lighting control with one timer only.
- Two-Digit Seven Segment Display – Quick and easy setting of load output functionality and timer.
- Three-Stage Battery Charging – Bulk, absorption, and float stages (non-programmable).
- Protection Features – Overload and short circuit protection for load output.
- Reverse Polarity Protection – Prevents damage from incorrect connections of the solar array or battery.
- Day/Night Timing Options – Automatically adjusts operation based on daylight levels.
- Bluetooth Enabled – Allows for remote monitoring and control.
- IP20 Protection – Dust-resistant, designed for indoor applications.
Specifications
- Brand: Victron Energy
- Manufacturer Part Number: SCC010010000
- GTIN: 8719076025276
- Voltage: 12/24V
- Rated Charge Current: 10A
- Protection Category: IP20
- Bluetooth Enabled: Yes
- Dimensions: H70 x W133 x D33.5mm
- Weight: 0.15kg
- Warranty: 5 Years
- Country of Manufacture: China
