Authorised Victron Energy InstallerVictron Energy BlueSolar MPPT 250/70-Tr VE.Can   SCC125070441
Victron EnergyExcellent on Google

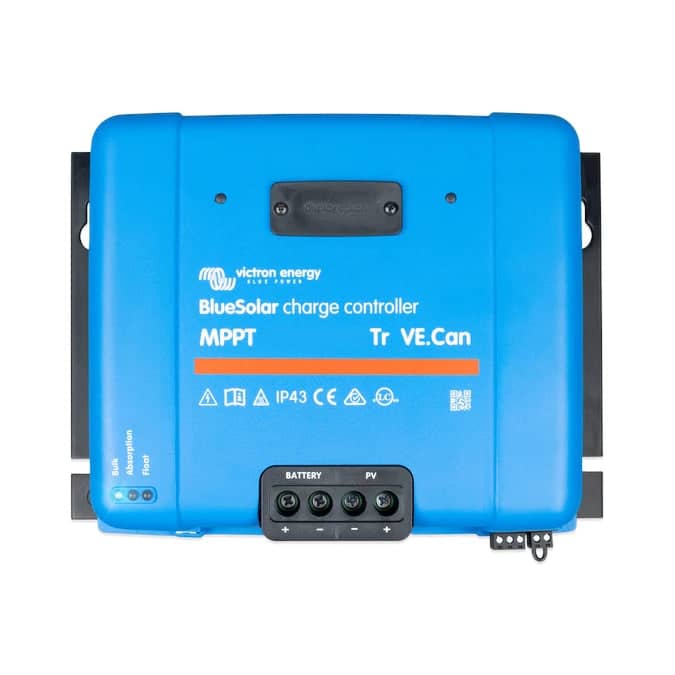

Victron Energy BlueSolar MPPT 250/70-Tr VE.Can SCC125070441

Victron part no. SCC125070441

£401.99Available to order, usually dispatched in 6 to 10 working days
Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

Introducing the Victron Energy BlueSolar MPPT 250/70 - a powerful solar charger that maximises energy harvest for your batteries.

With ultra-fast Maximum Power Point Tracking (MPPT) technology, it intelligently adapts to changing light conditions, ensuring a swift and efficient full charge.

Remote monitoring, intelligent load output, and a robust design make it the ideal choice for maintaining battery health and extending their lifespan.

Key Features

Features of the BlueSolar MPPT 250/70-Tr VE.Can

MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control

Remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a Bluetooth dongle and pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet with a GX device, the Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both VictronConnect and VRM are free to use. For remote installations, even when there is no internet connection nearby, you may be able to monitor your MPPT by connecting the GlobalLink 520.

Flexible Charge Algorithm

Fully programmable charge algorithm and eight pre-programmed algorithms, selectable with a rotary switch.

Extensive Electronic Protection

Over-temperature protection and power derating when temperature is high.

PV short circuit and PV reverse polarity protection.

PV reverse current protection.

Internal Temperature Sensor

Compensates absorption and float charge voltage for temperature.

Using the VE.Direct to Bluetooth Smart dongle with the BlueSolar MPPT 250/70-Tr VE.Can will allow you to see your MPPT information on iOS and Android devices, using the VictronConnect App. View information wirelessly such as battery status and solar panel power, plus other useful data.

Specifications

  • Brand: Victron Energy
  • Manufacturer Part Number: SCC125070441
  • GTIN: 8719076050889
  • Voltage: 12/24/48V
  • Rated Charge Current: 70A
  • Nominal PV Power, 12V: 1000W
  • Max. PV Short Circuit Current: 35A
  • Max. PV Open Circuit Voltage: 150V resp. 250V absolute maximum coldest conditions, 145V resp. 245V start-up and operating maximum
  • Protection Category: IP43 (electronic components), IP22 (connection area)
  • Efficiency: 99%
  • Bluetooth Enabled: No
  • Dimensions: H185 x W250 x D95mm
  • Weight: 3Kg
  • Warranty: 5 Years
  • Country of Manufacture: Malaysia

Datasheets

Datasheet

Manual
