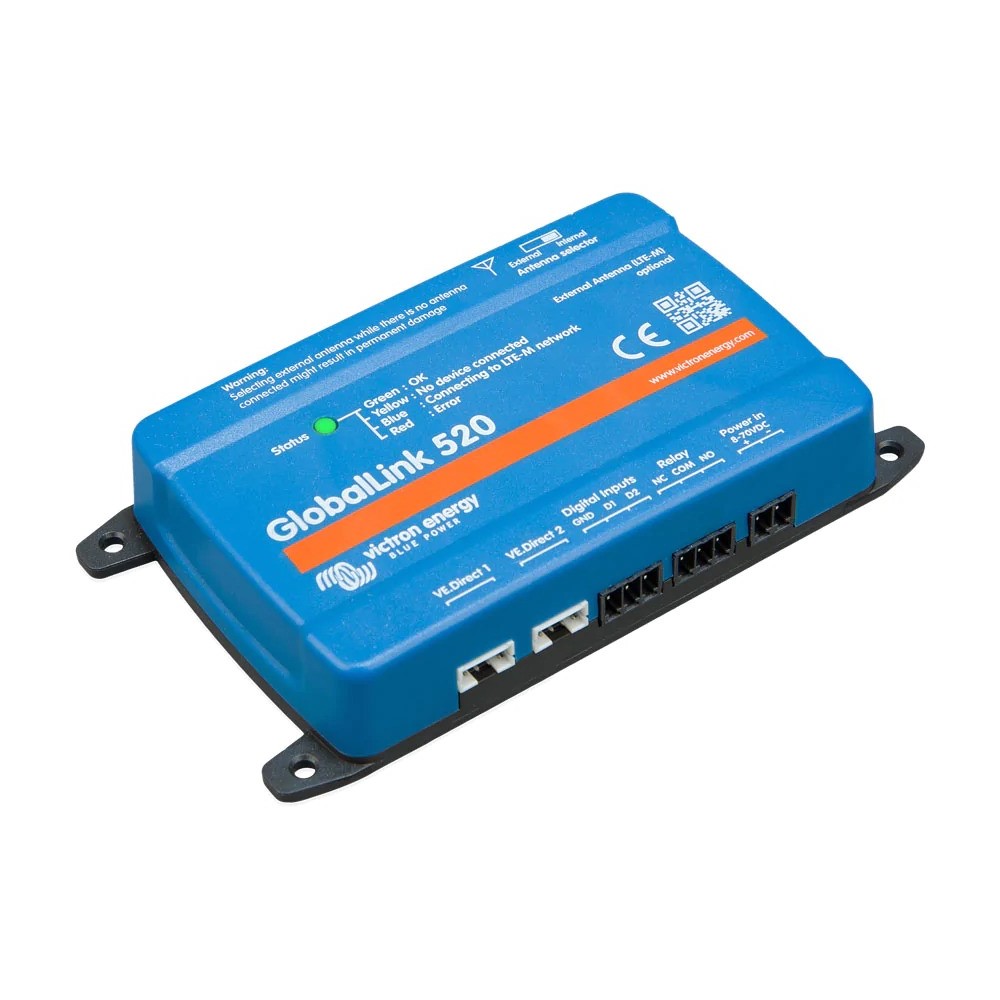

Victron ASS030543020 GlobalLink 520 - 4G VE.Direct Device Monitor

• Supply Voltage: 8 - 70VDC
• VE.Direct Ports: 2
• Digital Inputs: 2
• Bluetooth Smart: Yes
• Wifi: No
• Cellular: CAT M1(LTE-M) 17 bands supported (world wide support)
• Sim Card: Included 1nce data sim with > 5 years of connectivity
• Dimensions: 123 x 67 x 23mm

Datasheet Manual Video

Victron believe that having insight into your installation is a key factor in maintaining and operating your off-grid energy solutions. Off-grid should not mean off-line, so they have created the GlobalLink 520. This device will bring 4G LTE-M connectivity to all VE.Direct enabled devices without any monthly fees or subscriptions, for the first five years.

Features Global connectivity with 4G LTE-M

LTE-M is the abbreviation for LTE Cat-M1 or Long Term Evolution (4G), category M1. This cellular technology is designed to connect Internet of Things devices to existing 4G towers while using low energy. LTE-M does support handovers and roaming so it is possible to use this device in a moving vehicle like a campervan. Check https://1nce.com/en/coverage/ to see if LTE-M is officially confirmed to be available in your area. Coverage is increasing every week as local providers roll out support. Your purchase includes 5 years of connectivity, so there is no need to worry about purchasing a separate data bundle and SIM-card.

Easy system monitoring & control

Your GlobalLink 520 comes with two VE.Direct ports which allows you to connect up to two VE.Direct devices such as a BMV Battery Monitor and/or a MPPT Solar Charge Controller directly to VRM. With two digital inputs that also act as pulse counters and a remote controllable relay, it’s a perfect solution to monitor and control your installation.

Antenna built in

The GlobalLink 520 comes with a built-in antenna that is designed to work all around the globe. However if you require better reception or want to install your module in a utility van for example, it is also possible to mount an external antenna.

Victron Remote Management

The online Victron Remote Management (VRM) portal provides you with access to your installation, from anywhere, at any time. In VRM you can check the status of your connected products, view detailed history graphs of your energy, generate detailed analytical reports, and even configure automatic alarms in case something goes wrong.

}
