Tank Level Sender 200mm 0-190 ohms

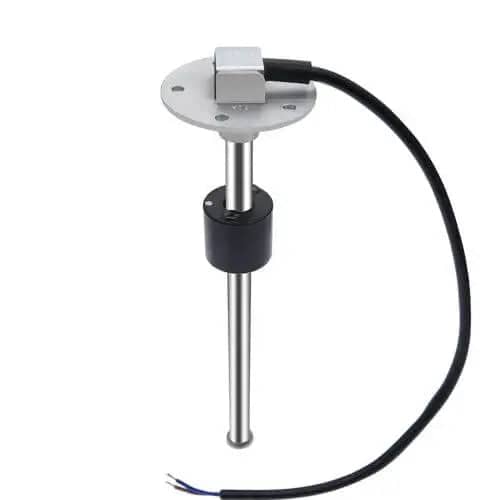

The Tank Level Sender 200mm 0-190 Ohms is a high-precision resistive sensor ideal for monitoring the water level in fresh water, grey water, or even diesel tanks. The sensor features a plastic float bob that rises and falls with the water level, providing a consistent and accurate reading. When paired with a Cerbo GX, it allows you to monitor your water tank levels via the VRM portal for real-time insights.

Available in various lengths to fit your specific tank size, the tank sender is constructed from durable stainless steel and plastic for long-lasting performance. It is easy to install and comes with a rubber gasket to ensure a tight seal. This sensor operates in a wide temperature range from -40ºC to +85ºC, ensuring functionality in a variety of environmental conditions.

Whether you're outfitting a campervan, a boat, or another mobile unit, this water tank level sensor is the perfect solution for accurate and reliable water level monitoring.

Key Features

• Resistive tank sender (240-33 Ohms or 1-190 Ohms depending on the length)
• Available in multiple lengths: 450mm, 400mm, 350mm, 300mm, 250mm, 200mm, and 150mm
• Constructed from stainless steel and plastic for durability
• Easy to install with rubber gasket for a tight seal
• Wide operating temperature range from -40 ºC to +85 ºC
• Ideal for monitoring fresh water, grey water, or diesel tanks
• Compatible with Cerbo GX for real-time monitoring via the VRM portal

Specifications

• Output Signal: 1-190 Ohms (150-400mm), 240-33 Ohms (450mm)
• Material: Stainless steel & plastic
• Screw Size: M5 x 0.8
• Operating Temperature: -40 ºC to +85 ºC
• Installation: Mount on the top of the tank, using a 40mm hole saw
• Available Lengths: 450mm, 400mm, 350mm, 300mm, 250mm, 200mm, 150mm
