Description

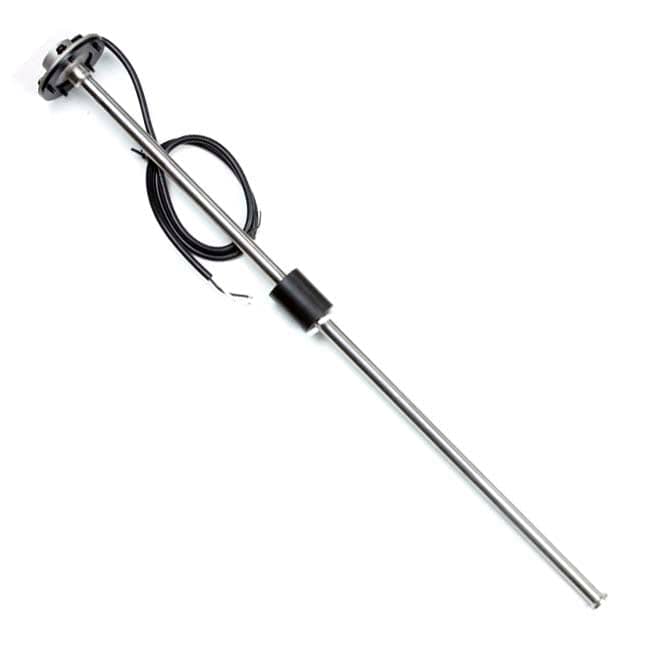

The Tank Level Sender 600mm 240-30 ohms is an essential tool for accurate fluid level monitoring in fuel, water, and diesel tanks. Constructed from stainless steel, the sensor features a metal-impregnated float that moves up and down the sender tube as the fluid level changes. The simple adjustable clip allows you to set the bottom float position, providing flexibility for various tank configurations.
This model comes with an 800mm two-core flex lead for easy installation and five 5.4mm holes on a 54mm PCD for secure mounting. The flange diameter is 69mm, fitting through a 33mm hole, making it suitable for tanks of varying sizes. The sensor also includes a fuel-proof rubber gasket and five screws for mounting, ensuring a secure and reliable installation.
With a resistance range of 0 ohms (empty) to 180 ohms (full), this sensor offers precise readings when paired with compatible instruments. It is designed to provide accurate readings as the fluid level fluctuates, ensuring you always know your tank's capacity. For best results, ensure the connected instrument matches the sender's resistance range to avoid inaccurate readings.
Key Features
- Stainless steel construction for durability and long-lasting performance
- Metal-impregnated float rises and falls as fluid levels change
- Adjustable clip to set the bottom float position
- 800mm two-core flex lead for easy installation
- Flange diameter of 69mm with five 5.4mm holes on a 54mm PCD
- Fits through a 33mm hole for versatile mounting
- Fuel-proof rubber gasket for a tight seal
- Resistance range from 0 ohms (empty) to 180 ohms (full)
- Includes five screws for secure mounting
Specifications
- Feature: Specification
- Material: Stainless steel
- Resistance Range: 0 ohms (empty) to 180 ohms (full)
- Flange Diameter: 69mm
- Mounting Hole Size: 33mm
- Flex Lead Length: 800mm
- Screw Size: 10-24 UNC
- Mounting Holes: Five 5.4mm holes on a 54mm PCD
- Float Type: Metal-impregnated, lightweight
- Projection Above Mounting Surface: 20mm
- Gasket: Fuel-proof rubber, 3mm thick
- Adjustable Clip: Yes
