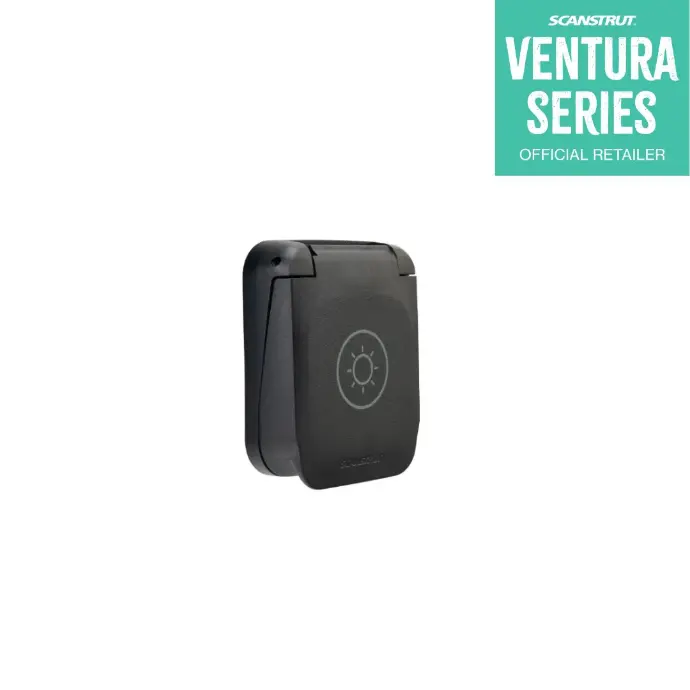

Scanstrut Ventura Series - XT60 Solar Connection - SC-V-S3

The Scanstrut Ventura Series XT60 Solar Connection is purpose-built for high-draw DC systems and rugged outdoor environments. Whether you're integrating solar input into a 12V, 24V, or 48V system, or powering vital gear at your off-grid basecamp, this connector offers consistent performance in all conditions.

Designed to work seamlessly with MC4-to-XT60 solar cables, the socket supports up to 30A continuous and 60A instantaneous current, handling demanding loads with confidence. With 150mm of tinned copper wire, 4mm² cable compatibility, and IP68/IP69K waterproofing, it's the ideal solar solution for serious outdoor setups.

Its compact form factor, spring-loaded lid, and marine-grade stainless steel hardware make it suitable for exposed panels on vans, overland rigs, expedition trailers, and more. When paired with a XT60W-F waterproof connector, this socket remains watertight during operation, ensuring reliable power even in challenging weather.

Key Features

• XT60 solar input socket designed for high-current, high-voltage DC power systems
• Compatible with MC4-to-XT60 cables for flexible solar integration
• Handles up to 60A peak / 30A continuous current: ideal for heavy solar loads
• Supports 12V, 24V, and 48V inputs, delivering up to 1400W of solar power
• Waterproof during operation when used with XT60W-F connector
• Built-in spring-loaded, click-shut lid for maximum ingress protection
• Rated IP68 & IP69K (when closed) for extreme environmental resistance
• UV-resistant and corrosion-proof with 316 stainless steel fixings
• Flying lead with 150mm tinned copper wire for efficient installation
• Low-profile design with 25mm holesaw mount for tidy panel fitting

Specifications

• Connector Type: XT60 (Supports XT60W-F waterproof)
• Max Voltage: 500V DC
• Max Current: 30A continuous / 60A instantaneous
• Max Power Delivery: 360W @ 12V / 720W @ 24V / 1400W @ 48V
• Flying Lead Length: 150mm (6"): Tinned Copper Wire
• Cable Size: 4mm² / 12 AWG
• Cable Bend Radius: 18mm (0.71")
• Install Hole Size: 25mm (1.00")
• Install Depth: 22mm (0.83")
• Waterproof Rating: IP68 / IP69K (lid closed)
• Waterproof in Use: Yes (when paired with XT60W-F)
• Mounting Gasket: Included
• Materials: UV-resistant housing, 316 SS hardware
