Overview

About this product

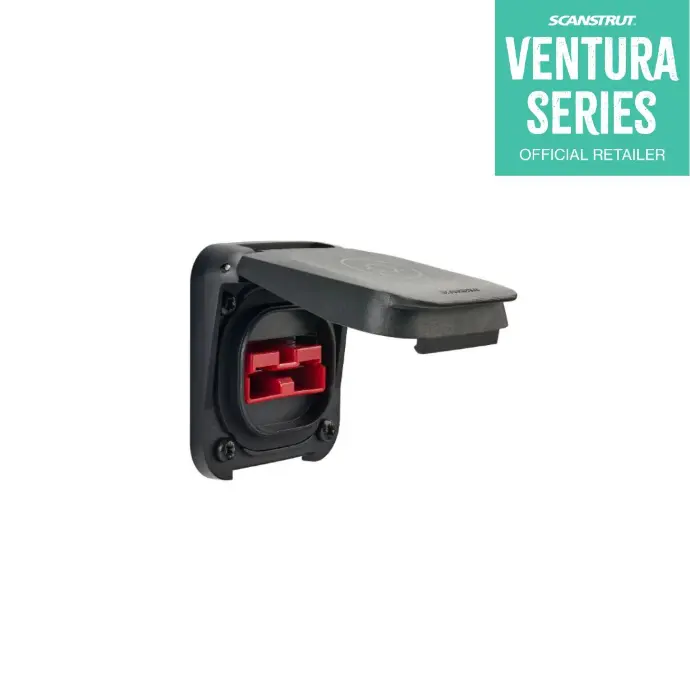

The Scanstrut Ventura Anderson 50A Solar Connection is engineered for demanding off-grid applications, providing a secure and weatherproof high-current connection for your solar charging or DC power system. Whether you're feeding solar into your camper’s battery bank, powering lithium storage, or connecting portable power at basecamp, this outlet delivers clean and dependable power with no compromise.

Featuring a rugged Anderson SB50 connector and optimised for 6AWG cable, the Ventura 50A port supports high-current transfer up to 50A at 600V DC, making it suitable for 12V, 24V, or 48V systems. Built with marine-grade Scanstrut quality, this connection point thrives in extreme conditions, from scorching heat to winter cold, dust storms to downpours.

Its IP68/IP69K-rated housing and 316 stainless steel fixings ensure a long service life in any environment. The standard 25mm holesaw fit allows for quick, tidy installation in limited panel space, making it a trusted solution for vanlifers, overlanders, and anyone who demands reliable outdoor energy connections.

Key Features

  • 50A high-power Anderson SB50 connector for secure solar or DC input
  • Supports 12V, 24V, and 48V systems: up to 2400W at 48V
  • Rated 600V DC for high-voltage setups
  • Marine-grade build: designed for permanent outdoor installation
  • IP68 & IP69K waterproof rating (lid closed)
  • UV-resistant housing and corrosion-proof materials
  • Standard 25mm holesaw installation for easy mounting
  • Ventura Series compact footprint: ideal for space-limited panels
  • Supplied with 316 stainless steel hardware
  • Terminal crimps not included

Specifications

  • Connector Type: Anderson SB50 (Red)
  • Rated Voltage: 600V DC
  • Rated Current: 50A (6AWG cable)
  • Max Power Delivery: 600W @ 12V / 1200W @ 24V / 2400W @ 48V
  • Installation Hole Size: 25mm (1.00")
  • Install Depth: 39mm (1.54")
  • Waterproof Rating: IP68 / IP69K (lid closed)
  • Materials: Marine-grade body, 316 SS fixings
  • Mounting Gasket: Included
  • Compatible With: MC4-to-Anderson Cables
