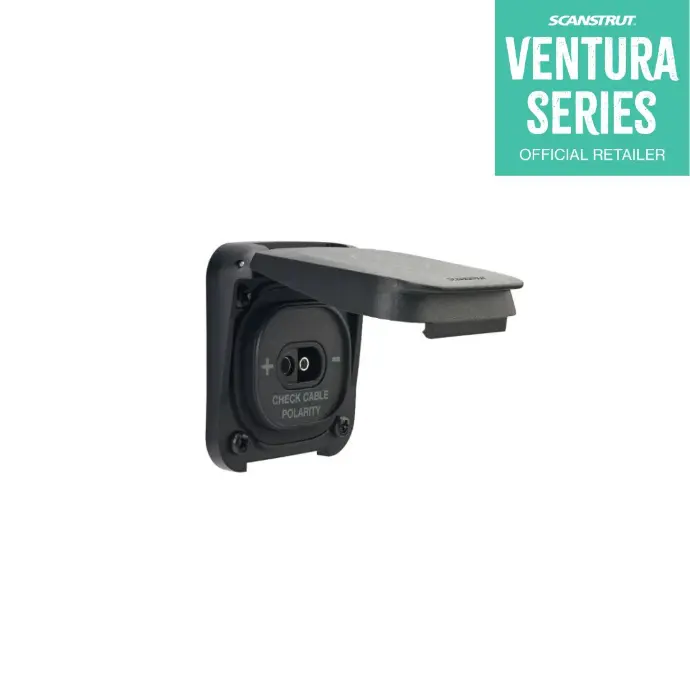

Scanstrut Ventura Series - SAE Solar Connection - SC-V-S2

Designed for off-roaders, vanlifers, and anyone who demands dependable solar input while exploring the great outdoors, the Scanstrut Ventura SAE Solar Connection brings marine-grade durability and simple solar charging to your adventure-ready vehicle.

Perfect for connecting solar panels, maintainers, or overland trailer inputs, this socket features a standard SAE-style two-pin connector with 150mm tinned copper flying leads, allowing quick and secure integration into your DC system. Built from UV-resistant materials with IP68/IP69K waterproof sealing (lid closed) and marine-grade 316 stainless steel fixings, this outlet is built to withstand harsh environments - rain, dust, heat, and salt air included.

Its compact, low-profile design and standard 25mm holesaw fitting make it a great fit for space-conscious installations on campers, 4x4s, trailers, and tiny homes. With 20A current handling and support for 4mm² / 12AWG cable, it delivers up to 480W of power to keep your off-grid systems energised, wherever the road leads.

Key Features

• SAE-style solar port with flying lead connection for easy integration
• Supports 12V and 24V systems: up to 480W max input
• Rated 20A max current with tinned copper leads for high-efficiency power delivery
• IP68 & IP69K waterproof when closed for maximum outdoor protection
• UV-resistant housing with marine-grade 316 stainless steel fasteners
• Premium spring-loaded lid: click-shut, corrosion resistant, and dustproof
• Standard 25mm holesaw installation for clean, uniform panel mounting
• Compact profile with robust, sealed design ideal for mobile applications
• Built to match and integrate with other Ventura Series utility sockets

Specifications

• Connector Type: SAE 2-pin
• Max Voltage: 24V DC
• Max Current: 20A
• Max Power Delivery: 240W @ 12V / 480W @ 24V
• Flying Lead Length: 150mm (6"): Tinned Copper Wire
• Cable Size: 4mm² / 12 AWG
• Cable Bend Radius: 18mm (0.71")
• Install Hole Size: 25mm (1.00")
• Install Depth: 45.5mm (1.79")
• Waterproof Rating: IP68 / IP69K (lid closed)
• Mounting Gasket: Included
• Materials: UV-resistant body, 316 SS fixings
