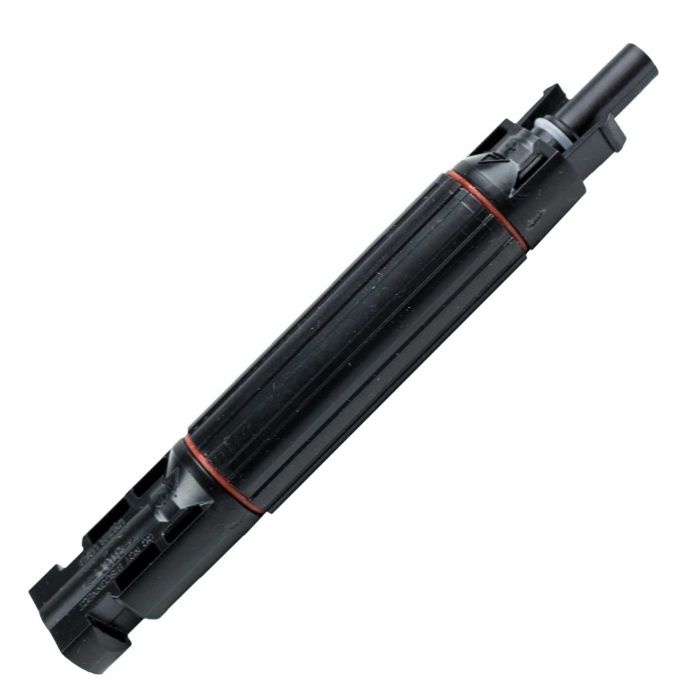

MC4 Fused Connector 20a

The MC4 Fused Connector 20A is built for higher current solar applications, providing critical protection by automatically breaking the circuit during surges to prevent damage. Featuring MC4 compatibility and IP67 water resistance, it is ready for the most demanding outdoor installations. Determine the required fuse size by calculating:

Watts of solar ÷ 12V (or 24V) = amps + 10 amps.

For example: 240W ÷ 12V = 20 amps + 10 amps = 30A fuse.

With this connector in place, your system is prepared for reliable performance and long-term safety.

Key Features

• Rated Current: 20A for higher capacity systems
• Rated Voltage: DC 1000V for robust applications
• Water Resistant: IP67 for secure use outdoors
• Low Contact Resistance: <0.5 ohm for efficient energy transfer
• MC4 compatibility for seamless connection
• Prevents equipment damage by breaking the circuit during surges

Specifications

• Rated Current: 20A
• Rated Voltage: DC 1000V
• Water Resistant: IP67
• Contact Resistance: <0.5 ohm
• Compatibility: MC4
