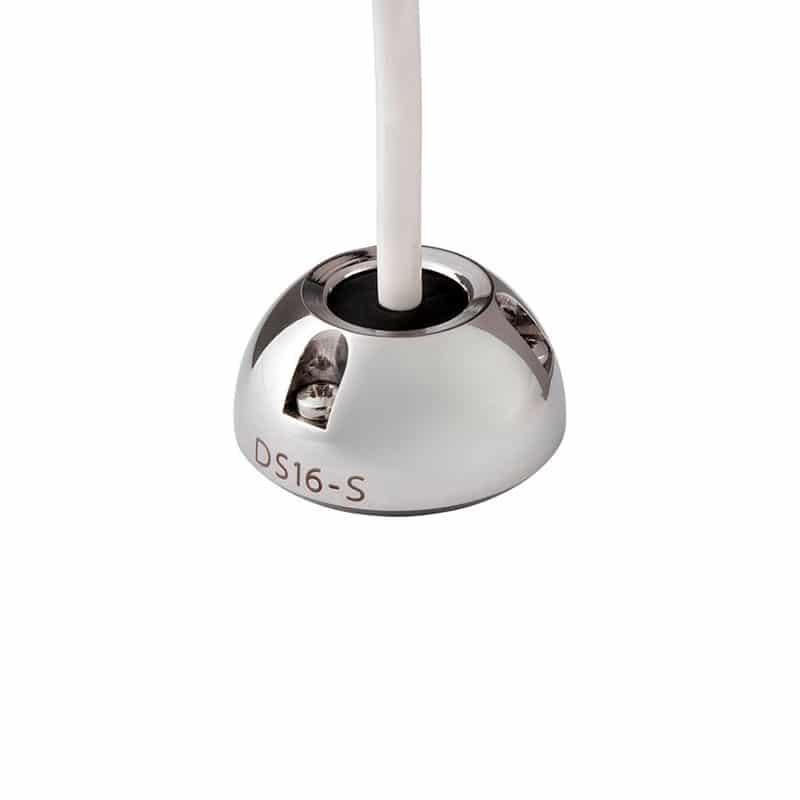

Scanstrut DS16-S Stainless Vertical Entry Cable Gland DS16-S

The Scanstrut DS16-S Stainless Vertical Entry Cable Gland is designed to provide a secure, waterproof entry point for cables ranging from 2mm to 8mm in diameter (0.08"-0.35"). It allows for the use of connectors up to 16mm (0.63") in size and features a sleek, dome-shaped profile that enhances both its aesthetic appeal and functional strength. This gland ensures 100% watertight installation, as it comes with a tapered bung and a closed-cell base seal, making it perfect for marine, outdoor, or any other environment requiring robust, waterproof cable management.

The Scanstrut DS16-S is designed for easy installation. It includes captive nuts for quick assembly, and the pre-drilledand blank inner seals allow for flexibility in cable configuration. It also features a split-seal option, enabling you to install cables without removing their connectors. This feature saves time and provides added convenience during setup.

The gland's impact-resistant dome provides not only a strong design but also an extra water shield for better protection against the elements. It is IP68-tested, ensuring it remains completely waterproof and resistant to dust and moisture.

Key Features

• Cable Diameter Compatibility: Fits cables from 2mm to 8mm (0.08"-0.35") in diameter.
• Connector Size Compatibility: Supports connectors up to 16mm (0.63") in diameter.
• Watertight Seal: Includes a tapered bung and closed-cell base seal for a 100% waterproof installation.
• Impact-Resistant Dome Shape: The dome-shaped profile provides strength and added protection against environmental impacts.
• Easy Installation: Captive nuts for straightforward assembly and the option to use both pre-drilled or blank inner seals.
• Split-Seal Option: Allows cables to be installed without removing connectors.
• IP68 Rating: Fully waterproof and dustproof for maximum protection.

Specifications

• Cable Diameter Compatibility: 2-8mm (0.08"-0.35")
• Connector Size Compatibility: Up to 16mm (0.63")
• Profile Shape: Aesthetic Dome-shaped
• Watertight Seal: Tapered bung and closed-cell base seal
• Impact Resistance: Strong and durable design
• Easy Assembly: Captive nuts for easy installation
• Waterproof Rating: IP68 (Dustproof & Waterproof)
• Design Features: Split-seal option, pre-drilled & blank seals
• Material: Stainless Steel
