Description

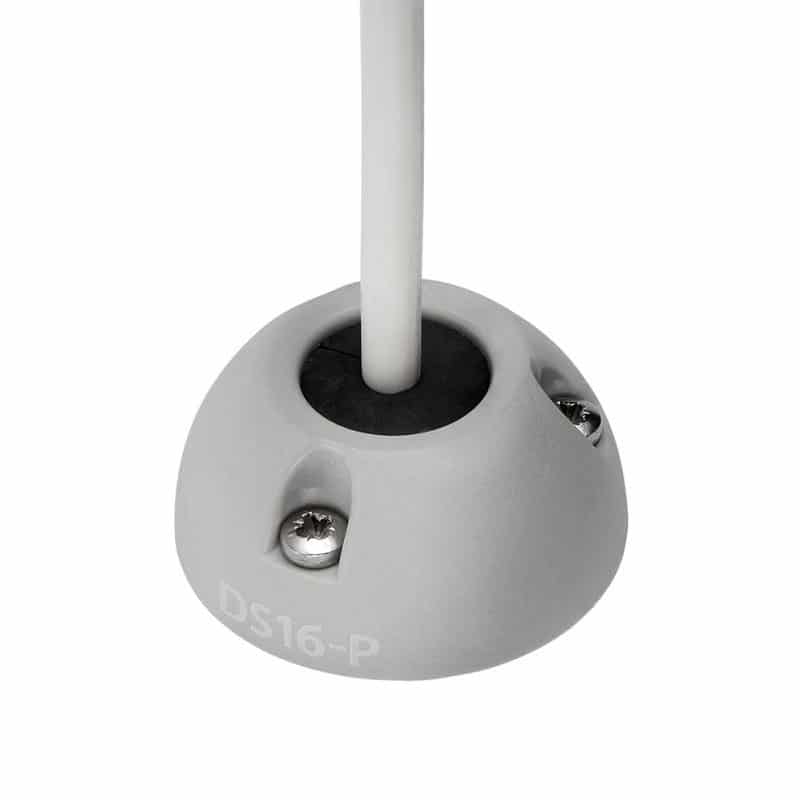

The Scanstrut DS16-P Grey Vertical Entry Cable Seal is designed to provide a watertight seal for cables ranging from 2mm to 8mm (0.08"-0.35") in diameter and connectors up to Ø16mm (0.63"). This IP68 rated seal ensures superior waterproof protection and offers a reliable, easy-to-install solution for various marine, automotive, and solar panel applications.
Key Features
- Watertight Installation: Tapered bung and closed-cell base seal guarantee a 100% waterproof installation. IP68 tested and approved for reliable water resistance.
- Easy & Reliable Installation: Captive nuts ensure easy assembly and allow for repeat installations. Supplied with both pre-drilled and blank inner seals for flexibility.
- No Need to Remove Cable Connectors: The split-seal option eliminates the need to remove connectors during installation, saving time and effort.
- Durable & Impact-Resistant Design: The aesthetic dome-shaped profile provides enhanced strength and impact resistance, while the outer dome acts as an additional water shield.
- Versatile Use: Perfect for a range of applications, including solar panels, marine electronics, and other outdoor electrical systems.
Specifications
- Feature: Specification
- Cable Diameter Compatibility: 2-8mm (0.08"-0.35")
- Connector Size Compatibility: Ø16mm (0.63")
- Profile Shape: Aesthetic dome-shaped
- Design Features: Impact-resistant, outer dome for extra water shield
- Waterproof Rating: IP68 (fully waterproof)
- Assembly: Captive nuts for easy and reliable assembly
- Included Components: Pre-drilled and blank inner seals
