Description

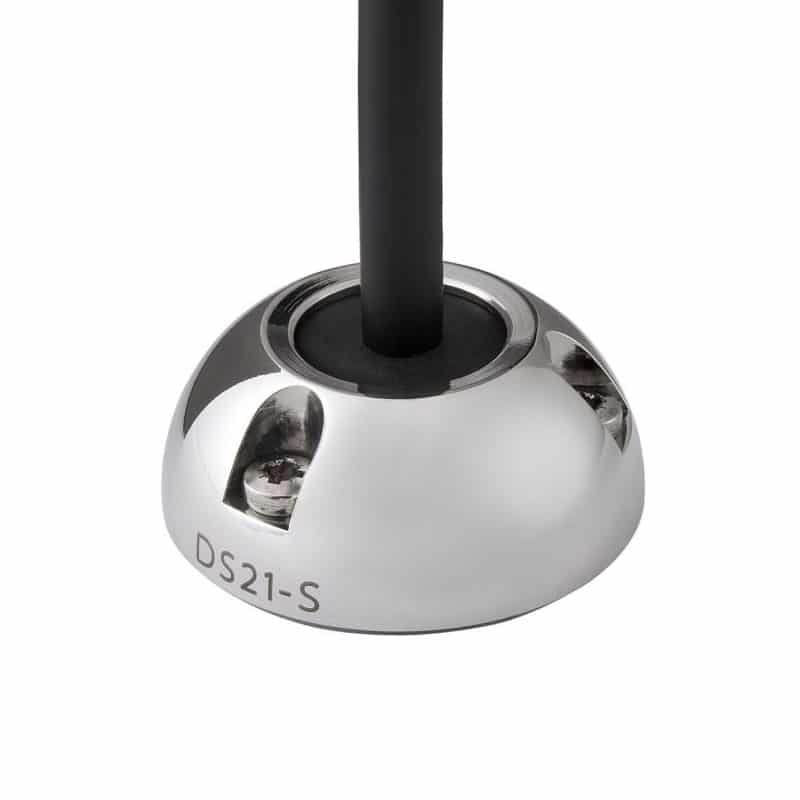

The Scanstrut DS21A-S Stainless Steel Vertical Entry Cable Seal is engineered to provide a reliable and aesthetic solution for cable routing while maintaining a fully watertight seal. Designed for cables ranging from 4-9mm (0.15"-0.35") in diameter, this versatile cable seal accommodates connectors up to Ø21mm (0.82"). Its marine-grade 316 stainless steel construction ensures long-term durability, even in harsh environments.
This innovative cable seal boasts an aesthetic dome-shaped profile, enhancing its strength and resistance to impact while adding an additional layer of water shielding. It features a tapered bung and a closed-cell base seal to ensure IP68-rated waterproofing, protecting your installation against moisture and environmental damage.
The split-seal design eliminates the need to remove cable connectors during installation, making it ideal for quick and efficient setups. With captive nuts in the base, assembly is straightforward and dependable, allowing for reliable repeat installations. Each unit is supplied with pre-drilled and blank inner seals for enhanced versatility.
Whether you're sealing cables for marine, outdoor, or industrial applications, the Scanstrut DS21A-S Cable Seal is the ultimate choice for robust performance, sleek aesthetics, and ease of installation.
Key Features
- Watertight Installation: IP68-rated waterproofing with a tapered bung and closed-cell base seal.
- Connector-Friendly Design: Split-seal option allows installation without removing cable connectors.
- Impact-Resistant Dome Shape: Aesthetic design with a dome profile for extra strength and water shielding.
- Easy Assembly: Captive nuts in the base ensure simple and reliable installation.
- Versatile Compatibility: Supports cable diameters from 4-9mm and connectors up to Ø21mm.
- Marine-Grade Durability: Crafted from 316 stainless steel for long-lasting performance in harsh conditions.
Specifications
- Feature: Specification
- Cable Diameter Compatibility: 4-9mm (0.15"-0.35")
- Connector Size Compatibility: Up to Ø21mm (0.82")
- Profile Shape: Aesthetic dome-shaped profile
- Material: 316 marine-grade stainless steel
- Waterproof Rating: IP68
- Assembly Ease: Captive nuts in base for simple and reliable assembly
- Design Feature: Stronger, impact-resistant dome design
