Description

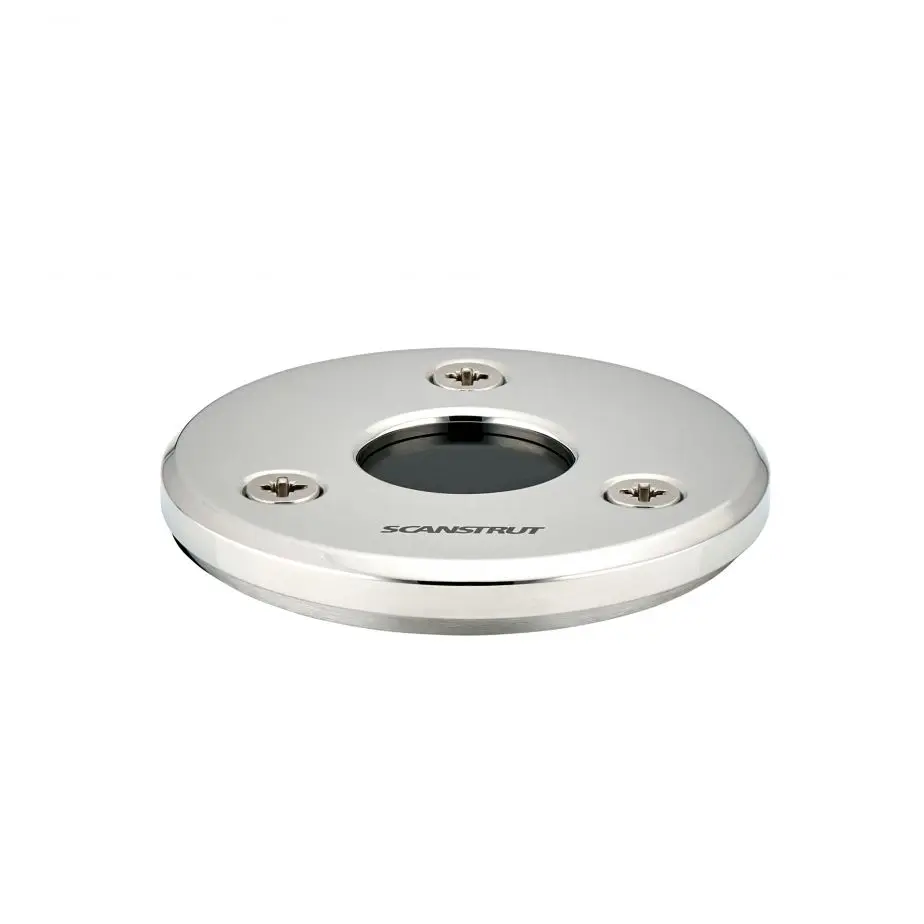

The DS-LP-21A-S Low-Profile Cable Seal is designed to accommodate cables ranging from 4-9mm and connectors up to Ø21mm, ensuring a 100% watertight installation. Constructed from marine-grade 316 stainless steel, this seal provides excellent corrosion resistance and durability, making it ideal for outdoor environments. Its low-profile design reduces mounting height by 68%, offering a clean and refined look.
Key Features
- IP68 Waterproof.
- Designed for 4-9mm cables (0.15"-0.35").
- UV Resistant.
- Constructed from marine-grade 316 stainless steel.
- No messy sealant, ensuring a tidy finish.
- Simplified installation that saves you time and effort.
- Guaranteed 100% watertight seal.
- Perfect for solar panels, light bars, rooftop electronics, and more.
- Each cable seal is installed by using a hole saw keeping seal technology below the mounting surface.
Specifications
- Cable Range: 4-9mm (0.15"-0.35")
- Connector Diameter: Up to Ø21mm (0.82")
- Material: Marine-grade 316 stainless steel
- Waterproof Rating: IP68
- UV Resistance: Yes
- Mounting Height Reduction: 68% compared to DS21A-P seal
- Seal Type: Tapered bung with closed-cell base
- Installation Method: Hole saw required
