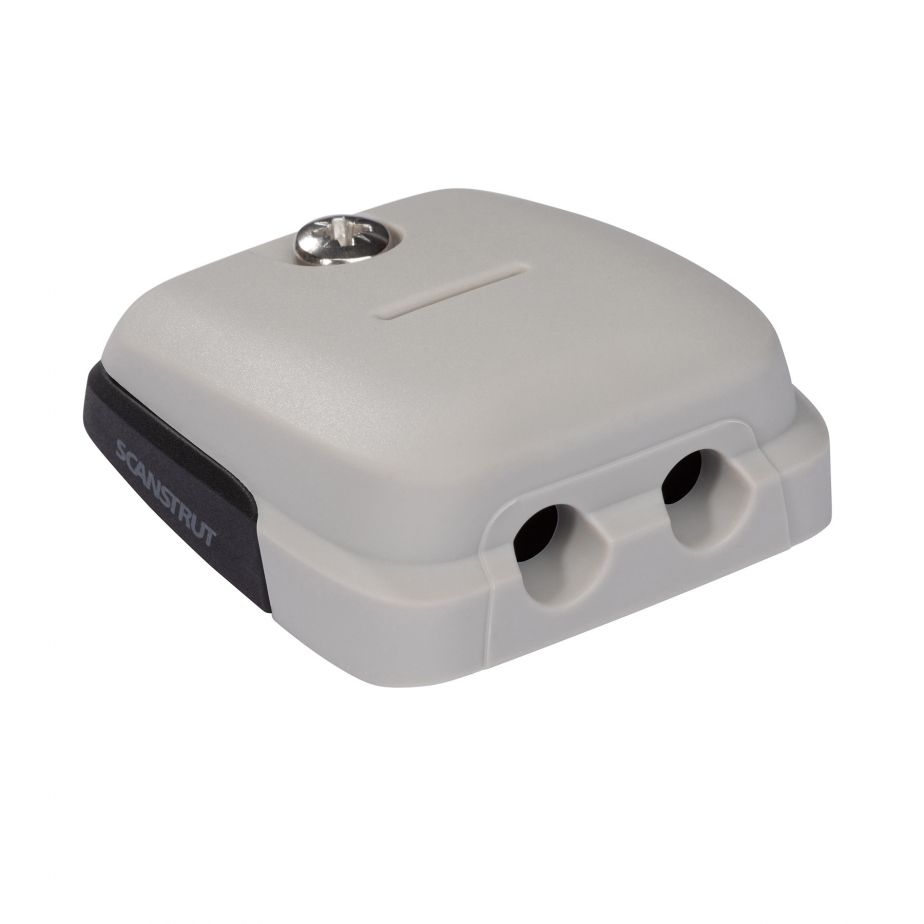

Scanstrut DS-HD6 Double Horizontal Double Cable Seal ( 2-6mm cables ) DS-HD6

The Scanstrut DS-HD6 cable seal is the ultimate solution for routing cables with minimal footprint and maximum water protection in outdoor and rooftop installations. Its premium materials and easy installation features make it an essential component for reliable, long-lasting connections in solar panel and marine setups.

Key Features

• Designed for solar panel installations
• Install 2 cables - 5mm (0.19”) and 6mm (0.23”) in any combination.
• Compact footprint - just 54mm (W) 63mm (L) 24mm (h)
• Makes it perfect for installing as close to the solar panel as possible
• Easy fit cable routing that cuts down your installation time through wood, metal, and GRP
• IP68 watertight seal
• Black high impact plastic
• Includes 316 stainless steel fixings and a waterproof 3M gasket
• Clean and simple design
• The low-profile construction is impact-resistant and provides extra protection from water
• Captive nuts make for easy assembly and also allow for reliable repeat installations
• Our materials have been selected to be UV- stable and hard-wearing
• No messy sealant on bungs
• Constructed from premium marine-grade materials

Specifications

• Model: DS-HD6
• Cable Compatibility: 2 cables of 5mm (0.19") and 6mm (0.23") in any combination
• Watertight Seal: IP68 waterproof
• Dimensions: 54mm W x 63mm L x 24mm H
• Material: Black high-impact plastic
• Fixings: 316 stainless steel
• Gasket: Waterproof 3M gasket
• Design Features: Low-profile, compact footprint, easy installation, UV stable, impact-resistant
• Impact Resistance: Yes
• UV Stability: Yes
• Installation: Mess-free, no sealant on bungs
