Description
Measure temperature, air humidity, air pressure and motion via Bluetooth connection to your Victron Cerbo GX!
Measuring Made Easy

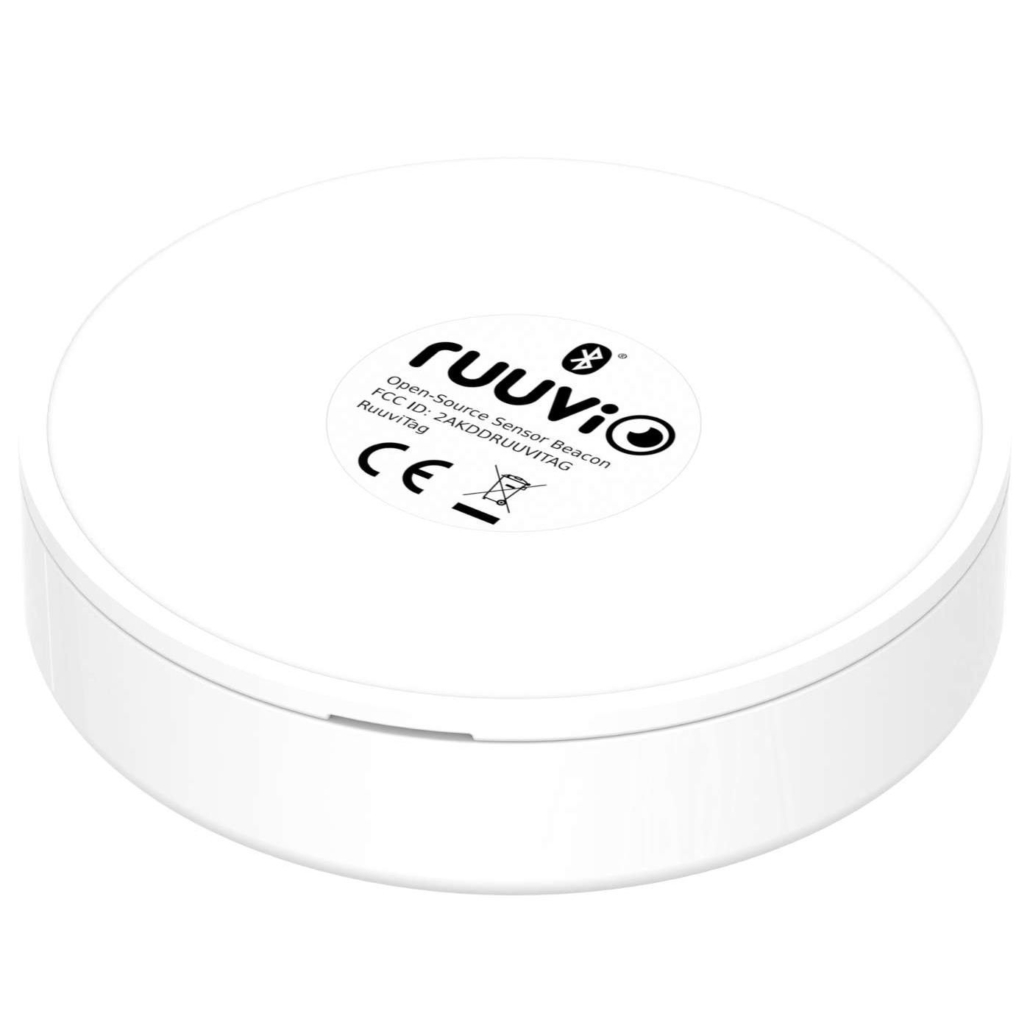

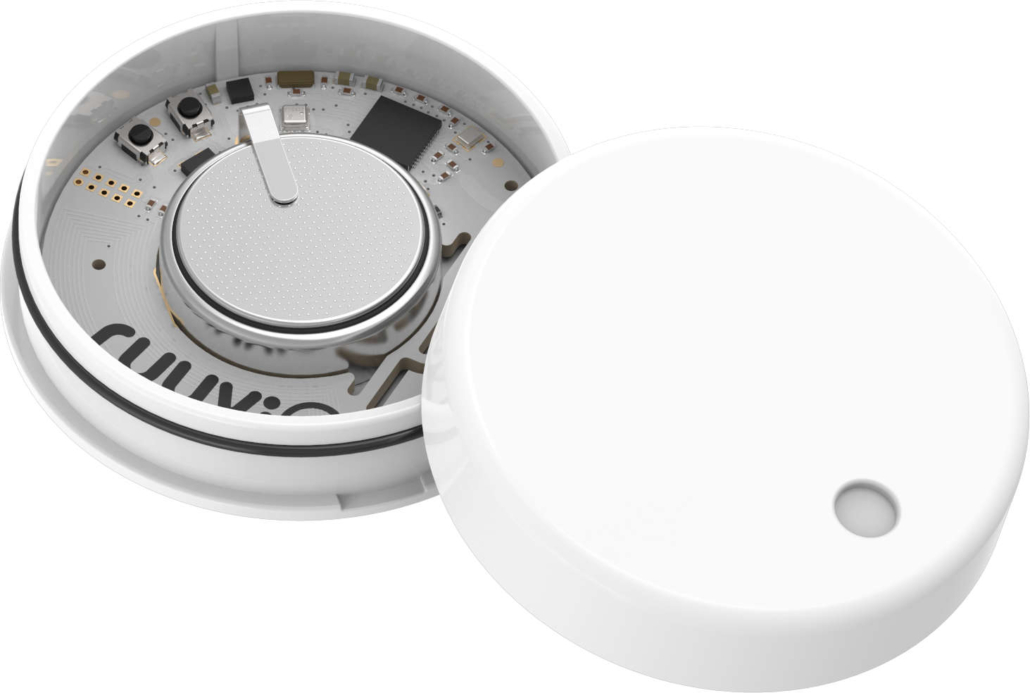

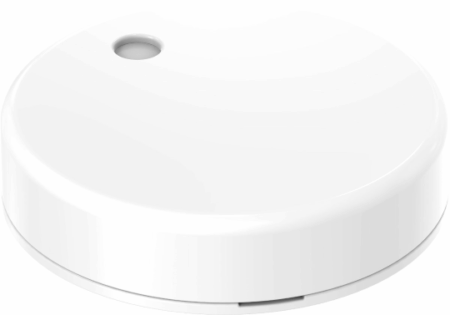

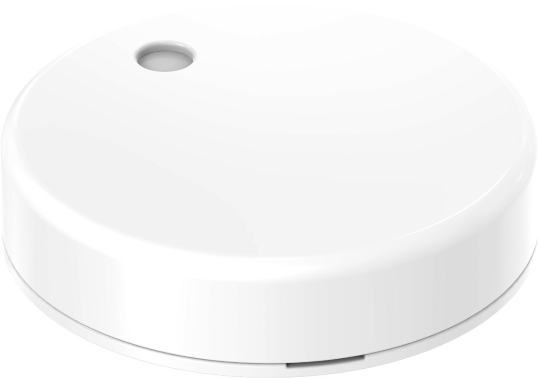

RuuviTag is a wireless Bluetooth sensor node that measures temperature, air humidity, and movement.
You can read live measurements and history data directly on your smartphone using Ruuvi’s mobile app for Android and iOS.
Use your imagination and measure almost anything at your home, at work, in your hobbies.
TECHNICAL SPECIFICATIONS
Product package
Sensor will be delivered in 1-pack or 3-pack packages depending on the quantity. Two sensors = 2 x 1-pack and three sensors = 1 x 3-pack. If you wish to have a specific packaging, please leave a note on the checkout page.
Recommended operating temperature
-20 ºC to +70 ºC (above these limits the Ruuvi special temperature range battery is required, not included)
Maximum operating temperature
-40 ºC to +85 ºC (electronics and enclosure)
Battery
1000 mAh CR2477 Li/MnO2 battery (included)
Diameter
52,00 mm
Height
12,55 mm
Weight
30 g
Temperature units (on Ruuvi Station)
Celsius, Fahrenheit, Kelvin
Humidity units (on Ruuvi Station)
Relative air humidity, absolute humidity, dew point
Pressure units (on Ruuvi Station)
Pa, hPa, mmHg, inHg
Temperature sensor accuracy
Typical absolute accuracy ±0,2 °C @ 5…60 °C, output resolution 0,01 °C
Humidity sensor accuracy
Typical absolute accuracy ±2 %, 20…80 %, 25 °C
Pressure sensor accuracy
Typical absolute accuracy ±1 hPa
Main chip
Nordic Semiconductor nRF52832
Ambient sensor
Sensirion SHTC3, temperature and air humidity
Pressure sensor
Infineon DPS310
Accelerometer
STMicroelectronics LIS2DH12
Radio protocols
Bluetooth (default), Wirepas Mesh, Lumenradio Mesh, Bluerange Mesh, ANT, Other 2.4 GHz proprietary protocols
NFC
Embedded NFC™-A tag antenna
Enclosure material
Polycarbonate
Waterproofing
IP67, not suitable for continuous immersion. When immersed, Goretex membrane is recommended to be sealed with waterproof tape. Standard enclosure is not suitable for high humidity installations with condensation risks.
Certifications
CE, FCC, ISED, TELEC, IFETEL, NOM, RTCA DO-160, RoHS, IP67
