RuuviTag Sensor ( 4in1 ) Temperature, Air Pressure, Humidity & Motion RTSDCC-EU

The RuuviTag 4-in-1 Environmental Sensor is an exceptionally versatile and precise monitoring device suitable for homes, vehicles, smart energy systems and industrial environments. Equipped with four on-board sensors, it measures temperature, air humidity, air pressure and motion, transmitting data every 2.5 seconds using Bluetooth Low Energy (BLE).

Using the free Ruuvi Station app, users can view real time readings, 10 days of historical data, and configure custom alerts to notify them of critical conditions such as rising humidity, overheating appliances, freezer failures or temperature-related comfort issues.

With IP67 splash-proof protection and a robust polycarbonate enclosure, the RuuviTag is suitable for indoor and outdoor use in non-condensing environments. Its compact design, extremely low power consumption and user replaceable CR2477 battery (12-24 months lifespan) make it ideal for long-term continuous monitoring.

The RuuviTag integrates seamlessly with Victron Energy systems such as Cerbo GX, Ekrano GX and GlobalLink 520. Using the VRM portal or Victron Connect app, users can monitor environmental data remotely and even automate system actions; for example, enabling cooling or ventilation when the RuuviTag detects a high temperature threshold.

Compared with the RuuviTag Pro, the standard RuuviTag offers a compact form factor and excellent accuracy, making it ideal for typical indoor and moderate outdoor conditions.

Key Features

• 4-in-1 sensor measuring temperature, humidity, pressure and motion
• BLE broadcasting every 2.5 seconds for real time data
• Fully integrated with Victron Energy GX devices and VRM portal
• 10-day onboard datalogger with 5-minute recording interval
• User replaceable CR2477 battery with 12-24 month lifespan
• IP67 splash-proof design suitable for non-condensing outdoor use
• High accuracy measurements: Temperature: ±0.2 °C typical Humidity: ±2 % Pressure: ±1 hPa
• Supports multiple wireless protocols including Bluetooth, Wirepas Mesh, Lumenradio Mesh, ANT
• Compact and lightweight: 52 mm diameter, 12.55 mm height, 30 g
• Works with Ruuvi Station, Victron Connect, VRM, Home Assistant and more
• Multi language app with alerts, dashboards and data export

Specifications

• Product Name: RuuviTag 4-in-1 Environmental Sensor
• Measurements: Temperature, humidity, air pressure, motion
• Protection Rating: IP67 (splash-proof, non-condensing)
• Operating Temperature: Minus 20°C to plus 70°C
• Temperature Accuracy: ±0.2 °C typical (5-60°C)
• Temperature Resolution: 0.01 °C
• Humidity Accuracy: ±2 % (20-80 %, 25°C)
• Pressure Accuracy: ±1 hPa
• Battery: CR2477 1000 mAh Li/MnO2 (replaceable)
• Battery Life: 12-24 months
• Datalogging: 10 days, 5-minute intervals
• Wireless Protocols: Bluetooth, Wirepas Mesh, Lumenradio Mesh, Bluerange Mesh, ANT
• Main Chip: Nordic Semiconductor nRF52832
• Sensors: Sensirion SHTC3 (temp & humidity), Infineon DPS310 (pressure), LIS2DH12 (motion)
• NFC: Embedded NFC-A antenna
• Wireless Range: 5-20 m indoors, 20-100 m outdoors

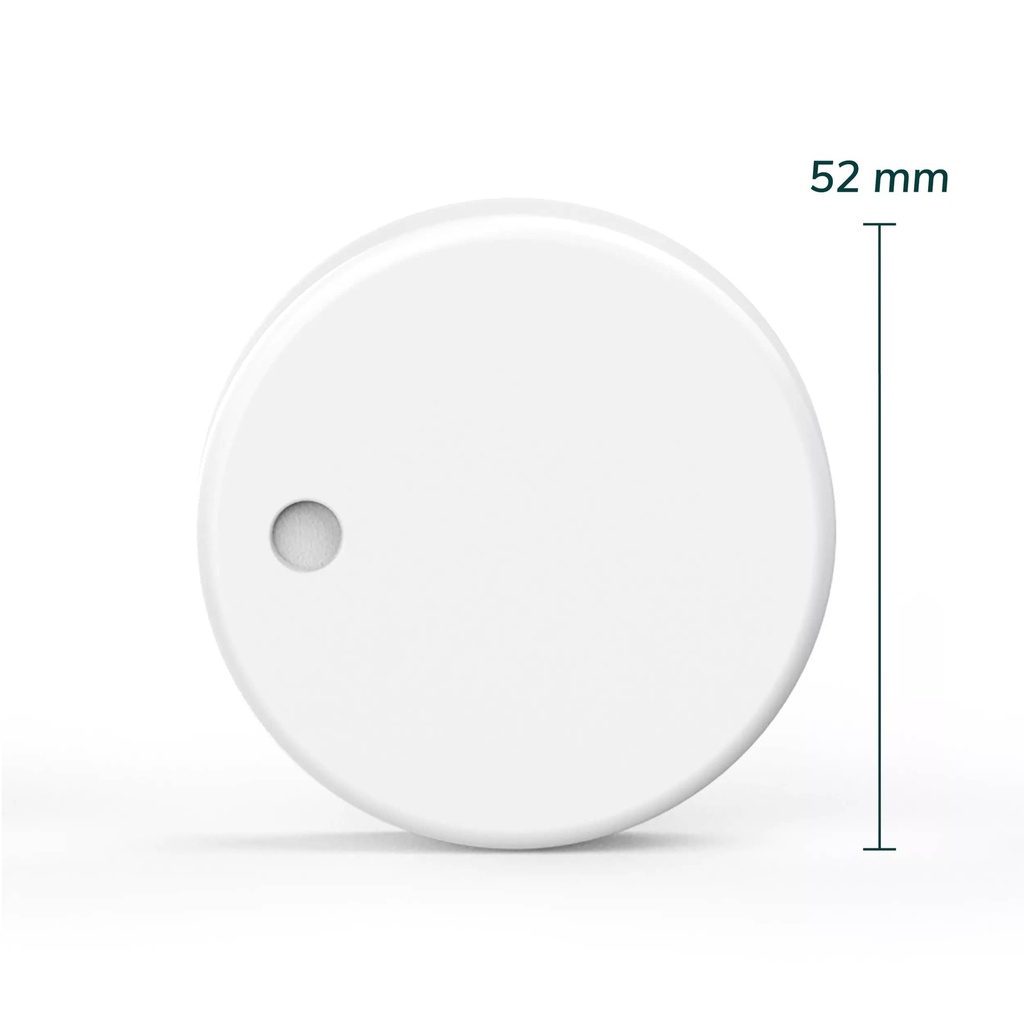

• Dimensions: 52 mm diameter x 12.55 mm height
• Weight: 30 g
• Enclosure Material: Polycarbonate
• Integrations: Victron Energy, Home Assistant, Ruuvi Station
• Certifications: CE, FCC, ISED, TELEC, IFETEL, NOM, RTCA DO-160H, RoHS, IC, HVIN, IMDA, OFCA, ICASA, POTRAZ

Technical Specification Sheet
