Description

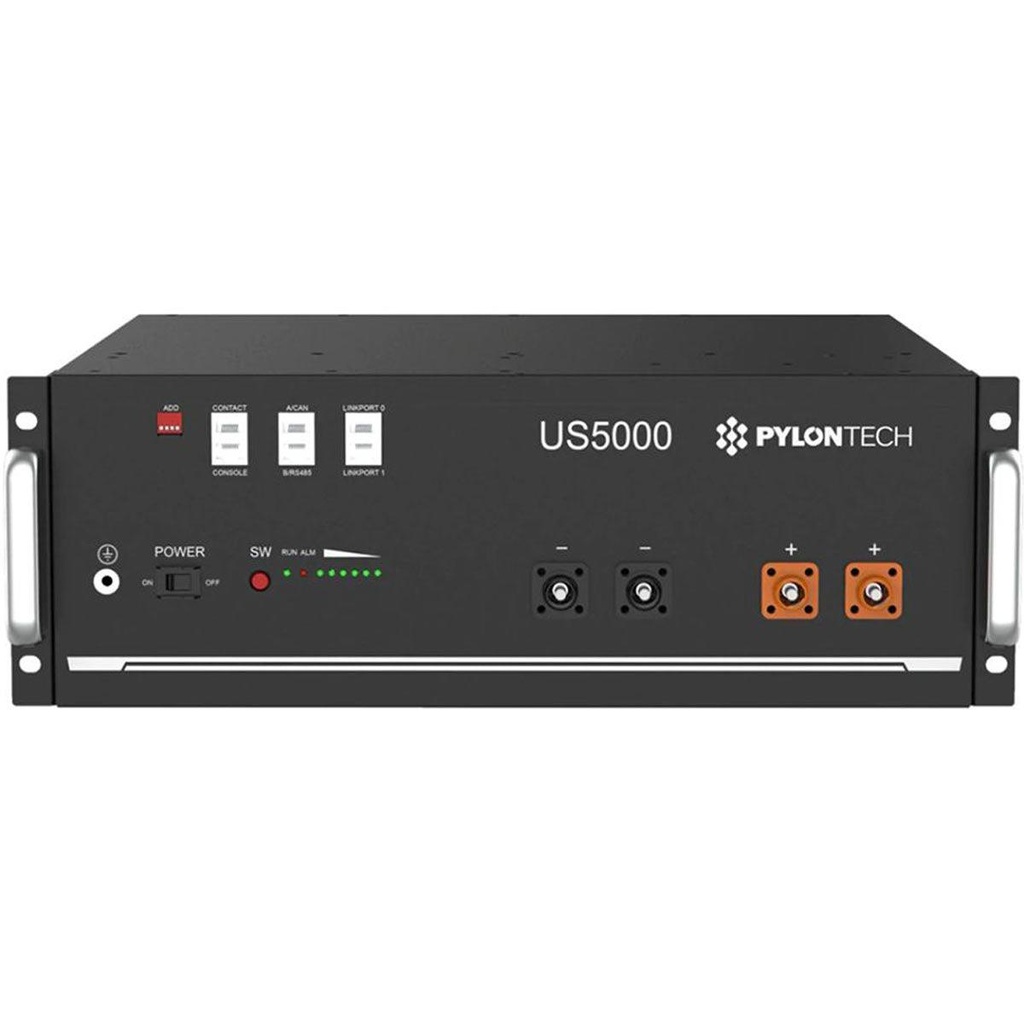

The Pylontech US5000 Li-Ion Battery stands out in the energy storage market for its combination of high capacity, modular flexibility, and robust safety features. With an exceptional DoD and compatibility with a broad range of solar inverters, it is a smart choice for both residential and commercial applications. This battery is not only a reliable power source but also a future-proof investment, given its potential for system expansion and longevity.
Key Features
High Capacity: The US5000 provides 4.8 kWh of energy storage, with a usable capacity of 4.56 kWh due to its high DoD.
Modular Design: The battery's modular design allows users to easily expand their energy storage system by daisy-chaining multiple units together, supporting installations of up to 72.96 kWh without needing additional communication hubs.
Compatibility: Compatible with 35 solar inverter brands, including Voltacon, allowing for seamless integration into existing systems.
Remote Firmware Upgrade: The battery can be updated remotely via an internet connection, ensuring that the system remains up-to-date with the latest features and improvements.
Robust Performance:
- Continuous Discharge Rate: 2400 W
- Maximum Discharge Rate (5 Minutes): 4800 W
- Surge Discharge Rate (15 Seconds): 5808 W
- Maximum Charge Rate (5 Minutes): 4800 W
Safety Features: Equipped with four levels of current protection, including charging/discharging MOS, dual passive and active fuses, and a pre-charge circuit to safeguard battery operation.
Extended Life Expectancy: Designed for over 8,000 cycles at an ambient temperature of 25°C, with a life expectancy of 15 years.
Compact Dimensions:
- Weight: 39 kg
- Package Dimensions: 560 x 510 x 260 mm
Warranty: Comes with a 5-year warranty, extendable depending on registration and usage.
Specifications
- Brand: Pylontech
- Model: US5000
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Nominal Energy: 4800 Wh
- Usable Capacity: 4.56 kWh
- Depth of Discharge (DoD): 95%
- Voltage: 48 V
- Weight: 39 kg
- Dimensions (mm): 560 x 510 x 260
- Continuous Discharge Rate: 2400 W
- Maximum Discharge Rate (5 Min): 4800 W
- Surge Discharge Rate (15 Sec): 5808 W
- Maximum Charge Rate (5 Min): 4800 W
- Cycle Life: Over 8000 cycles at 25°C ambient
- Warranty: 5 years (extendable)
- Remote Firmware Upgrade: Yes
- Parallel Capability: Up to 16 units
