Description

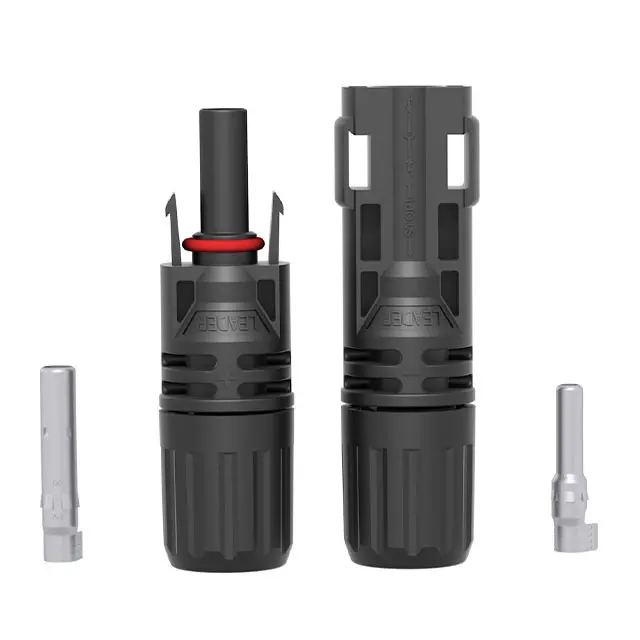

The MC4 Connector is designed for high-performance and reliable connections in photovoltaic and solar applications. These connectors boast a high current capacity of 30A and a voltage rating of up to 1500V, ensuring efficient power transfer. Constructed with 99.98% pure copper contacts, they minimize power loss while the halogen-free XPLO insulation and Virgin PVC sheathing provide superior protection from the elements. These connectors are highly resistant to extreme temperatures, water, UV light, oxidation, rust, and corrosion. With an IP68 rating and flame retardant properties (UL94 V-0), the YJ-MC4 connectors ensure safe and durable connections in harsh environments.
Key Features
- High Capacity: Supports up to 30A current and 1500V voltage.
- Secure Connection: NEC Interlocked design requires a tool to disconnect.
- Premium Materials: 99.98% pure copper contacts minimize power loss.
- Robust Protection: Halogen-free XPLO insulation and Virgin PVC sheathing.
- Flame Retardant: Rated to UL94 V-0 for enhanced safety.
- Durability: Resistant to high/low temperatures, water, UV light, oxidation, rust, and corrosion.
- IP68 Rating: Ensures dust and waterproof connections.
- Standard Compliance: Meets IEC62852:2014 standards.
Specifications
- Parameter: Value
- Product ID: YJ-MC4
- Max. Current: 30A
- Max. Voltage: 1500V
- Contact Material: 99.98% Pure Copper
- Insulation Material: Halogen-free XPLO, Virgin PVC
- Flame Retardant Rating: UL94 V-0
- Temperature Range: -40°C to 85°C
- IP Rating: IP68
- Connection Method: MC4, Bayonet locking, cable to cable
- Cable Diameter: 2.5mm, 4mm, 6mm
- Cable Entries: 2
- Standards: IEC62852:2014, NEC Interlocked
- Photovoltaic / Solar Connector Type: Female and Male Coupler
- Wire Size AWG Max: 10AWG
