Description

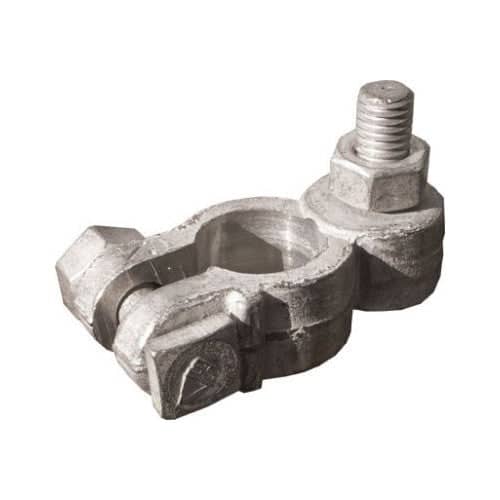

The Lighting Terminal Positive is equipped with an M8 (8mm) stud, providing a reliable and efficient connection for eyelet terminals. The stud has a length of 16mm (excluding the nut) and is designed to accommodate multiple eyelets, making it perfect for larger setups. Made from tin-plated brass, this terminal ensures excellent conductivity and resistance to corrosion. It is specifically designed to fit European and British standard size tapered battery terminals, offering easy installation and a snug fit. The positive terminal features a bottom opening of 17.22mm and a top opening of 16.08mm, with tapered measurements allowing for tolerance of +/- 1.5mm. Ideal for a range of battery applications, this terminal provides a safe and secure connection.
Key Features
- M8 (8mm) Stud: 16mm length, suitable for multiple eyelet connections
- Nut Spanner Size: 13mm, nut thickness 6.50mm
- Made from Tin-Plated Brass: Ensures superior corrosion resistance and conductivity
- European & British Standard: Fits tapered battery terminals of standard sizes
- Precise Fit: Bottom opening 17.22mm, top opening 16.08mm (tapered dimensions with a tolerance of +/- 1.5mm)
Specifications
- Stud Size: M8 (8mm)
- Stud Length: 16mm (without nut)
- Nut Spanner Size: 13mm
- Material: Tin-plated brass
- Tapered Terminal Dimensions: Bottom 17.22mm, Top 16.08mm
- Application: Compatible with European & British standard battery terminals
