Description

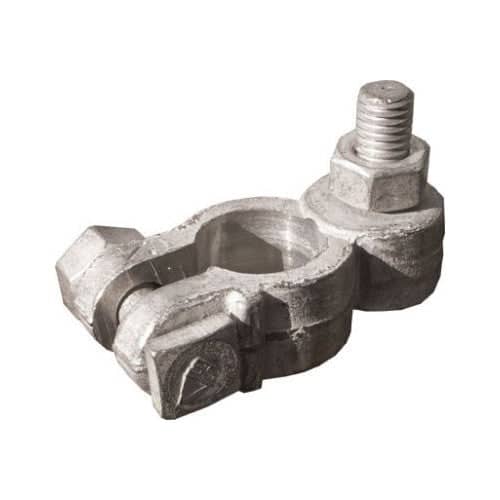

This Lighting Terminal Negative features an M8 (8mm) stud, providing a secure and reliable connection for battery systems. The stud is 16mm in length (without the nut), allowing multiple eyelet terminals to be fitted simultaneously, making it an ideal solution for larger setups. Manufactured from tin-plated brass, this terminal offers superior corrosion resistance and conductivity. The bottom opening measures 17.22mm while the top opening is 16.08mm, with tapered measurements within a tolerance of +/- 1.5mm, ensuring a snug and secure fit. Compatible with both European and British standard size tapered battery terminals, this terminal is a great choice for safe and efficient battery connections.
Key Features
- M8 (8mm) Stud: 16mm length for multiple eyelet connections
- Nut Size: Spanner size 13mm, nut thickness 6.50mm
- Superior Material: Made from tin-plated brass for corrosion resistance
- Compatible Design: Fits European & British standard tapered battery terminals
- Precise Fit: Bottom opening 17.22mm, top opening 16.08mm (with a tolerance of +/- 1.5mm)
Specifications
- Stud Size: M8 (8mm)
- Stud Length: 16mm (without nut)
- Nut Spanner Size: 13mm
- Material: Tin-plated brass
- Tapered Terminal Dimensions: Bottom 17.22mm, Top 16.08mm
- Application: Compatible with European & British standard battery terminals
