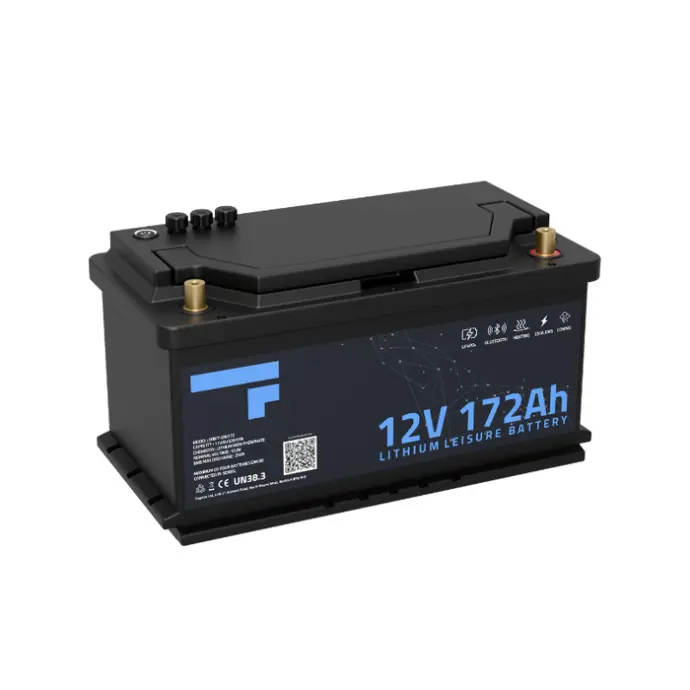

Fogstar Drift 12V 172Ah DIN Fit

The Fogstar Drift 12V 172Ah (H8) DIN Fit is designed to be a true drop-in replacement for lead-acid batteries, offering the same physical footprint while delivering the performance benefits of LiFePO₄ technology.

Built in a standard DIN (H8) case, it allows seamless installation into existing battery compartments without modification, making it ideal for campervans, motorhomes, marine applications, and off-grid systems upgrading from AGM or lead-acid setups.

At its core is a powerful 250A Smart BMS, providing advanced protection and consistent power delivery for both leisure and inverter-based systems. The addition of active cell balancing ensures long-term stability and efficiency, while integrated CANbus and RS485 communication enables clean system integration with compatible inverter and monitoring platforms.

Designed for real-world conditions, the battery features Bluetooth monitoring, a built-in low-temperature heating system, and a physical on/off switch for safe isolation. Built using Grade A EVE prismatic cells, it offers dependable performance backed by a 10-year warranty and UK-based support.

Key Features

• DIN Drop-In Replacement: fits standard H8 battery trays without modification
• 2,201Wh Energy Capacity: ideal for high-demand leisure and off-grid systems
• 250A Smart BMS: advanced protection and stable power delivery
• Active Cell Balancing: improves efficiency and long-term battery health
• CANbus & RS485 Communication: integrates with advanced power systems
• Bluetooth Monitoring: real-time data via mobile app
• Low Temperature Protection: built-in heating for safe cold-weather charging
• On/Off Isolation Switch: safe installation and maintenance
• Grade A EVE Cells: premium LiFePO₄ performance and reliability
• IP67 Rated: resistant to dust and water ingress
• Expandable System: scalable for larger battery banks
• 10-Year Warranty & UK Support: long-term peace of mind

Specifications

• Cell Configuration: 4S1P
• Nominal Capacity: 172Ah
• Energy: 2,202Wh
• Cell Chemistry: Lithium Iron Phosphate
• Nominal Voltage: 12.8V
• Cycle Life: 3500 Cycles @ 80% DOD
• Maximum Discharge: 250A
• Maximum Charging Current: 172A
• Standard Charging Voltage: 14.4V
• Maximum Charging Voltage: 14.6V
• Discharge Cut Off Voltage: 10V
• Discharge Temperature Range: -20°C ~ 55°C
• Charge Temperature Range: 0°C ~ 55°C
• Heating Function: 0°C ~ 10°C
• Measurements (LxWxH mm): 359.8 x 178.3 x 188.6
• Weight: 16kg
• Housing Material: ABS Plastic
• BMS Maximum Discharge: 250A
• BMS Max Charging Current: 250A
• Terminals: M8 - 1.25 pitch - 12mm (bolts included) (Fogstar listing)
• IP Rating: IP67 (Fogstar listing)

Figures as published by Fogstar: Fogstar Drift 12V 172Ah DIN spec sheet (March 2025); Fogstar product listing (checked 29 Oct 2026).
