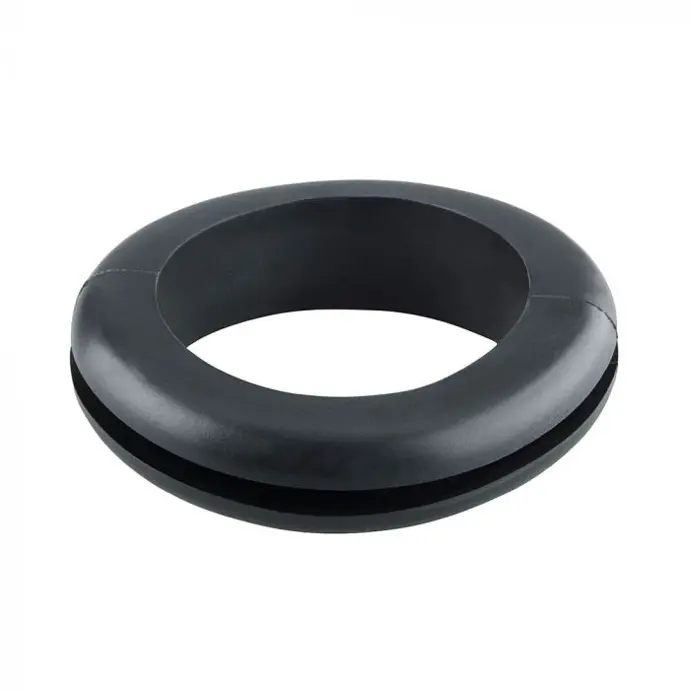

Description
The 16mm grommet is made from flexible black PVC and is engineered to prevent wire damage from panel edges. With a ±60 Shore 'A' hardness rating and temperature resistance from -20°C to +65°C, it’s ideal for various light-duty electrical setups. This one-piece moulded grommet is easy to install and offers long-term cable protection in static, unloaded applications.
Key Features
- Made from durable and flexible black PVC
- Prevents cable chafing and wear
- One-piece moulded design for easy push-in installation
- Available in multiple sizes (16mm – 50mm)
- Suitable for static, unloaded applications
- Operating temperature range: -20°C to +65°C
Specifications
- Attribute: Value
- Product Type: Open Wiring Grommet
- Material: Flexible PVC
- Colour: Black
- Panel Compatibility: 1.6mm thickness
- Application Type: Static, unloaded
- Hardness: ±60 Shore 'A'
- Temp. Range: -20°C to +65°C
- Sizes Available: GW16, GW20, GW25, GW38, GW50
- Installation: Push-fit, one-piece moulded design
