Description

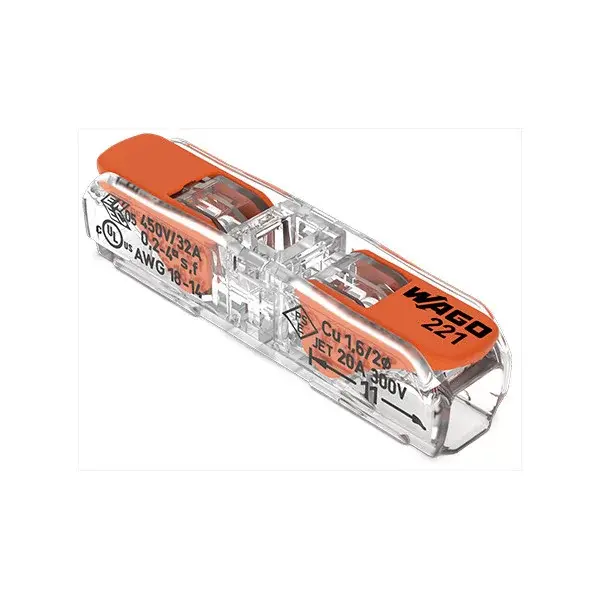

The WAGO 221-2411 Compact Lever Inline Connector is designed for seamless and efficient electrical installations. Its innovative lever mechanism allows for tool-free connection and disconnection, making the process straightforward and hassle-free. The transparent housing provides a clear view of the connections, ensuring proper and secure wiring. Suitable for solid, stranded, and fine-stranded conductors ranging from 0.2mm² to 4mm², this versatile connector is ideal for a wide range of applications. Its slim design saves space, making it perfect for tight installation areas. With a voltage rating of 450V AC and a current rating of 32A, the 221-2411 is a reliable choice for both professional and DIY projects.
Key Features
- Easy inline connection for solid, stranded, and fine-stranded conductors
- Transparent housing for visual inspection
- Tool-free connection and disconnection with lever technology
- Compact and slim design saves space
- Suitable for a wide range of conductor sizes
- Voltage rating: 450V AC
- Current rating: 32A
- Dimensions: 8.1 mm x 8.9 mm x 35.5 mm
- Suitable for worldwide installations
Specifications
- Feature: Specification
- Solid Conductors: 0.2 mm² to 4 mm² (20 AWG to 14 AWG)
- Stranded Conductors: 0.2 mm² to 2.5 mm² (18 AWG to 14 AWG)
- Fine Stranded Conductors: 0.2 mm² to 4 mm² (18 AWG to 14 AWG)
- Voltage Rating: 450V AC
- Current Rating: 32A
- Housing: Transparent with orange lever
- Dimensions (W x H x D): 8.1 mm x 8.9 mm x 35.5 mm
- Connection Type: Inline
- Design: Compact, tool-free lever
