Description

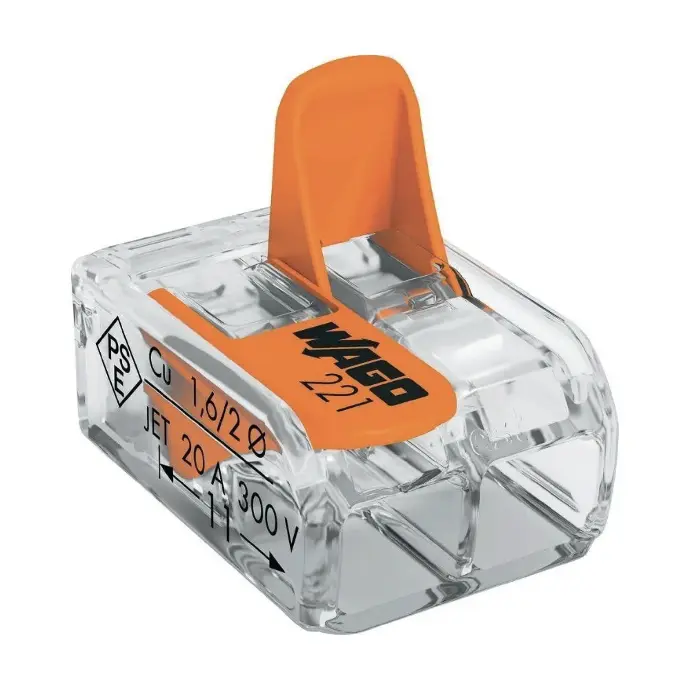

The WAGO 221-412 Compact Lever Connector is an innovative solution for efficient electrical installations. Designed to handle solid, stranded, and fine-stranded conductors, this 2-way connector simplifies the process of terminating wires. The lever operation is straightforward: lift the lever, insert the conductor, and push the lever down. This connector is 40% smaller than previous models, saving space in junction boxes. The transparent housing allows for visual inspection to ensure proper wiring, and it includes test ports at the front and rear for easy testing. Suitable for a wide range of applications, the WAGO 221-412 supports conductor sizes from 0.14mm² to 4mm² and is ideal for industrial, communications, lighting, security, and HVAC systems.
Key Features
- Easy Operation: Lift the lever, insert the conductor, and push the lever down.
- Compact Design: 40% smaller than the 222 series, saving space in junction boxes.
- Versatile Compatibility: Accommodates solid, stranded, and fine-stranded conductors.
- Transparent Housing: Allows for visual inspection to ensure correct wiring.
- Test Ports: Located at the front and rear for easy testing.
- High Current and Voltage Ratings: Supports 32A and 450V AC.
- Ambient Temperature: Rated up to 85°C.
- Side Entry Type: For convenient wiring.
- Dimensions: 13.2 mm x 18.6 mm x 8.4 mm.
- Application Areas: Industrial, communications, networking, lighting, security, signalling, and HVAC.
Specifications
- Feature: Specification
- Conductor Sizes: 0.14 mm² to 4 mm² (24–12 AWG)
- Operation Method: Lever
- Number of Ways: 2
- Current Rating: 32A
- Voltage: 450V AC
- Ambient Temperature: Up to 85°C
- Housing Material: Transparent with orange levers
- Test Ports: Yes, front and rear
- Dimensions (W x H x D): 13.2 mm x 18.6 mm x 8.4 mm
- Application: Industrial, communications, lighting, security, signalling, HVAC
- Compliance: Meets industry standards for safety and reliability
