Authorised Victron Energy Installer
- This item is available to order dispatched in 6 to 10 working daysTo order dispatched in 6 to 10 working days
- 14-day returns
- Excellent on Google 33 reviews
Authorised Victron Energy InstallerFeatures include: Temperature sensor, use as a power supply, forced cooling. Input voltage / input voltage range: 230 V AC / 90 - 265 V AC. Frequency: 45-65 Hz / Power factor: 1. Charge voltage 'absorption' / 'float': 28.5 V DC / 26.5 V DC. Charge current: 50 A. Charge characteristic: IUoUo (three step). Protection: output short circuit, battery reverse polarity detection, battery voltage too high, temperature too high. Operating temp. range -20 to 60°C (0 - 140°F). Humidity (non condensing) max 95%. Protection category IP 21.

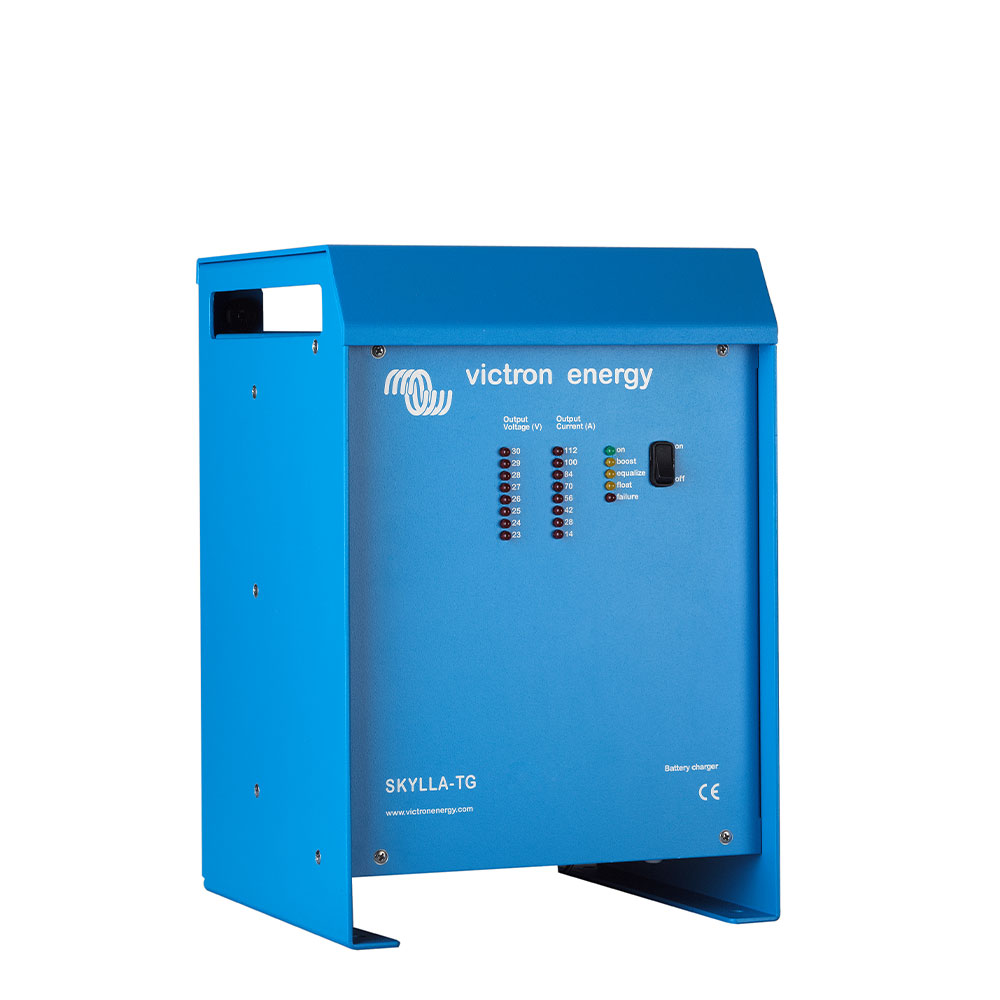

The Skylla TG has proven itself to be an excellent battery charger and power supply for GMDSS applications. However, when using a standard Skylla charger, additional equipment is needed to perform the monitoring and alarm functions required for GMDSS.
Installation made easy: the Skylla GMDSS - The Victron Skylla GMDSS charger has been designed to provide all required monitoring and alarm data. Both the battery and the GMDSS system are connected directly to the charger. Data and alarms are displayed on a digital panel (VE.Net GMDSS panel, to be ordered separately). A standard eight wire UTP cable connects the charger to the panel.
No adjustments needed - The whole system is ‘click and go’: the panels are pre-programmed for GMDSS functionality. A simple, intuitive menu allows changing of settings if required.
Battery time to go - The Skylla GMDSS charger has a built-in battery controller. The capacity of the battery is fully monitored so the panel can even indicate the ’time to go’ in case of a power supply black out.
Perfect charger for any type of battery - Charge voltage can be precisely adjusted to suit any VRLA or flooded battery system.
Free 30-minute call, Victron kit specified for your build, wiring diagram part for part.
