Authorised Victron Energy InstallerVictron Orion-Tr Isolated DC-DC Converter 12/12-9A (110W)
Victron EnergyExcellent on Google

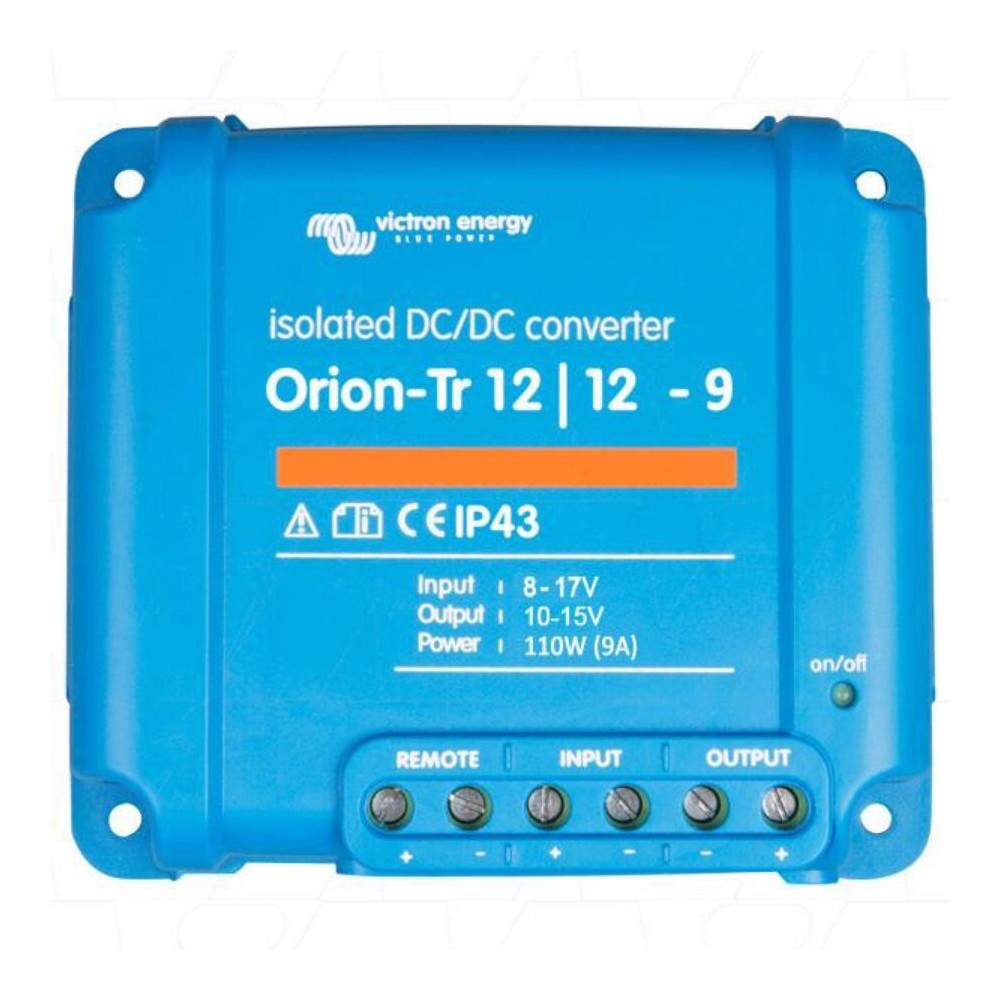

Victron Orion-Tr Isolated DC-DC Converter 12/12-9A (110W)

12V-12V converter ensures a stable 12V output with constant voltage no matter if the battery is charged or discharged.

£58.99Available to order, usually dispatched in 6 to 10 working days
Usually dispatched in 6 to 10 working daysUK delivery, priced at checkout
5 years standard warrantyVictron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user. Victron warranty policy
14-day returnsOn unused standard items
Tom Alderdice
Not sure it's the right size?Free 30-minute call with Tom, or ring 01539 761 467.
Book a call
Overview

About this product

  • Input Voltage Range: 8-17V
  • Under Voltage Shutdown: 7V
  • Under Voltage Restart: 7.5V
  • Nominal Output Voltage: 12.2V
  • Output Voltage Adjust Range: 10-15V
  • Short Circuit Output Current: 32A
  • Cont. Output Power at 25°C: 110W
  • DC Connection: Screw Terminals
  • Protection Category: IP43
  • Dimensions: 100 x 113 x 47mm
  • Weight: 0.42Kg
  • Warranty: 5 Years
  • Remote on-off: The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
  • Adjustable output voltage: can also be used as a battery charger: For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models are short circuit proof and can be paralleled to increase output current: An unlimited number of units can be connected in parallel.

  • IP43 protection: When installed with the screw terminals oriented downwards.
  • Screw terminals: No special tools needed for installation.
