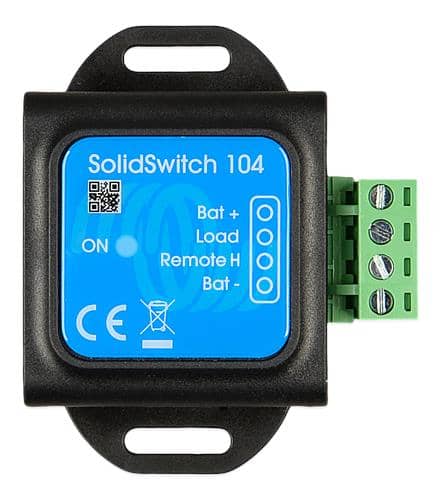

Victron Energy SolidSwitch 104 BMS800200104

The Victron SolidSwitch 104 is a reliable and efficient DC switch that allows you to control DC loads up to 70V and 4A using a low-power digital signal. This makes it ideal for automation, renewable energy systems, and battery management applications.

Designed for versatile load handling, the SolidSwitch 104 can switch resistive, capacitive, or inductive loads, such as high-power contactors and solenoids. However, it is important to note that the SolidSwitch is not reverse polarity protected and is not short-circuit proof, so careful installation is required.

With a compact and durable ABS enclosure (IP20-rated), the unit is lightweight and easy to install in various power systems. It is backed by a 5-year warranty, ensuring long-term reliability.

This cost-effective and high-performance switch is ideal for use in solar power systems, off-grid setups, and industrial automation applications.

Key Features

• The SolidSwitch 104 will switch DC loads of up to 70V/4A and can be controlled by a low power digital signal.
• The DC load can be resistive, capacitive or inductive (such as the coil of a high-power contactor).
• The SolidSwitch is not reverse polarity protected and not short circuit proof.

Specifications

• Brand: Victron Energy
• Manufacturer Part Number: BMS800200104
• GTIN: 8719076055556
• Operating Input voltage range: 8-70VDC
• Maximum load current: 4A
• Protection grade: IP20
• Material and colour: ABS, matt black
• Dimensions: H58 x W66 x D23mm
• Weight: 200g
• Warranty: 5 Years
• Country of Manufacture: India

Datasheets

Datasheet
