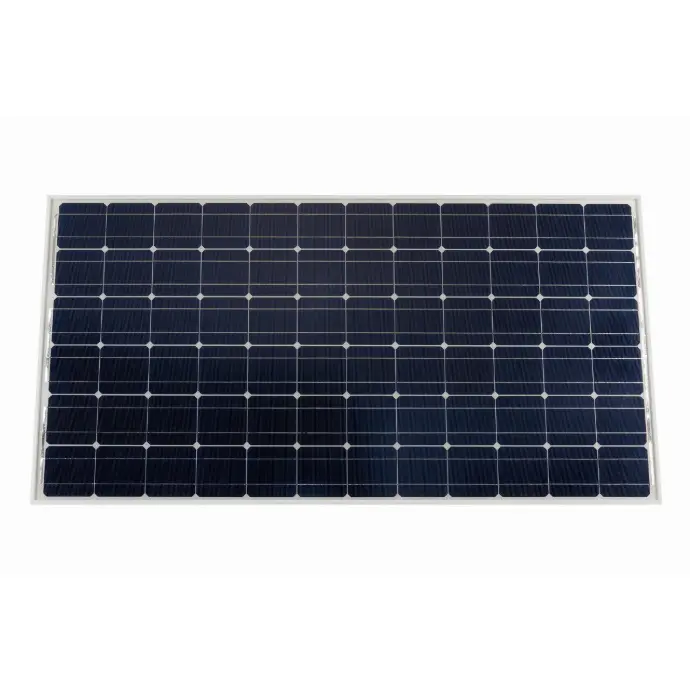

Victron Energy Solar Panel 95W-30 Cells Mono 770x668×30mm Series 4c - SPM040953003

The Victron Energy 95W Monocrystalline Solar Panel (Series 4c) provides dependable, high-output solar performance, making it an ideal choice for marine installations, motorhomes, remote power systems and auxiliary off-grid applications. Featuring 30 premium monocrystalline cells, this panel delivers a stable voltage profile optimised for 12V charging through regulated solar controllers.

Constructed with tempered glass, triple-layer EVA encapsulation and a corrosion-resistant anodised aluminium frame, the panel is engineered to withstand harsh outdoor conditions including saltwater exposure, UV radiation, vibration and temperature fluctuations. Its sealed junction enclosure ensures secure, long-lasting cable protection in all weather conditions.

Designed to maintain power output in variable sunlight, this 95W module offers enhanced low-light responsiveness and integrated bypass diode protection, reducing performance drops during partial shading. Whether used for maintaining battery banks, powering remote loads or supporting standalone DC systems, it delivers excellent energy density and long-term reliability.

Key Features

• 95W monocrystalline output for efficient, compact off-grid power generation
• 30-cell configuration optimised for controlled charging of 12V systems
• Low-light sensitivity ensures usable output in diffuse or shaded conditions
• Integrated bypass diodes reduce performance loss when partial shading occurs
• Thermally stable voltage characteristics for improved hot-weather performance
• Tempered protective glass offering impact and abrasion resistance
• Triple-layer EVA encapsulation for superior cell insulation and long-term durability
• Sealed junction box providing robust environmental protection
• Corrosion-resistant anodised aluminium frame, ideal for marine and mobile use
• Positive power tolerance ensures real-world performance meets or exceeds rated output

Specifications

• Model: SPM040953003
• Nominal Power: 95W
• Voltage at Maximum Power (Vmp): 19.6V
• Current at Maximum Power (Imp): 4.59A
• Open-Circuit Voltage (Voc): 24.06V
• Short-Circuit Current (Isc): 5.03A
• Cell Type: Monocrystalline
• Cells in Series: 30
• Panel Dimensions: 770 × 668 × 30mm
• Frame Material: Anodised aluminium
• Temperature Coefficient (Power): -0.45%/°C
• Temperature Coefficient (Voltage): -0.35%/°C
• Temperature Coefficient (Current): +0.04%/°C
• Operating Temperature Range: -40°C to +85°C
• Protective Diodes: Integrated bypass diodes
• Junction Box: Sealed multi-function design
